Physical Security

Expected delivery 3 to 7 business days (exceptions applied)

Axis Communications

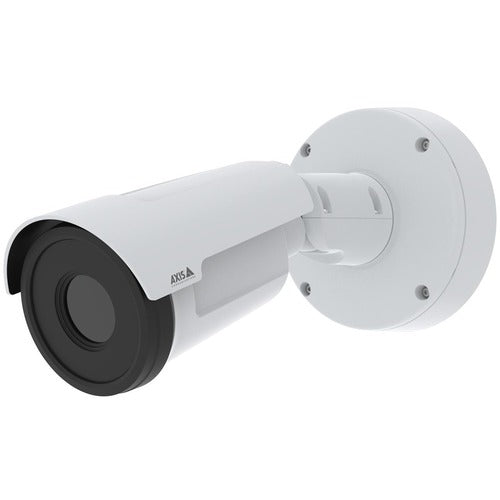

AXIS Q1961-TE Outdoor Network Camera - Color - White - H.264, Zipstream, H.264B

AXIS Q1961-TE Outdoor Network Camera - Color - White - H.264, Zipstream, H.264B

Regular price $0.00 CAD
Regular price $0.00 CAD Sale price $0.00 CAD
-Liquid error (snippets/price line 128): divided by 0% OFF Ask for quote
Shipping calculated at checkout.
AXIS Q1961-TE Outdoor Network Camera - Color - White - H.264, Zipstream, H.264B, H.264H, H.264M, Motion JPEG, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), H.265 (MP), H.265, Zipstream - 768 x 576 - 7 mm (0.28\") Fixed Lens - 30 fps - Uncooled Microbolometer - IK10 - IP66, IP67 - Impact Resistant, Corrosion Resistant

VPN:02174-001 SKU:PHS423489 UPC:

  • Features Uncooled Microbolometer sensor
  • Up to 768 x 576 resolution for surveillance in real-time

Volume discount available - Ask for quote..

View full details

Recently Viewed

AXIS Q1961-TE Outdoor Network Camera - Color - White - H.264, Zipstream, H.264B

Product information summary

AXIS Q1961-TE Outdoor Network Camera - Color - White  - H.264, Zipstream, H.264B

About the product

Ideal for improving operational efficiency, this halogen-free, thermometric camera lets you remotely monitor temperatures and trigger temperature-based events. Robust and impact-resistant, it offers early fire detection analytics and built-in cybersecurity features.

What's the temperature?

AXIS Q1961-TE lets you remotely monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F)*. So, you don't need to be onsite to know if your equipment is getting close to overheating - you'll receive a notification if the temperature passes a set threshold, or if it increases or decreases too rapidly. This allows you time to act to avoid unwanted downtime and it enables predictive maintenance planning. AXIS Q1961-TE supports up to 10 configurable polygonal detection areas, making it possible to monitor areas for specific temperature levels. With spot temperature reading, you can click on the image and see the exact temperature in the specific area. Furthermore, through metadata, you'll have access to temperature statistics.

Detect early signs of fire

In addition to offering powerful analytics capabilities, AXIS Q1961-TE comes with early fire detection preinstalled making it possible to set triggers and get warnings about early signs of fire or potential overheating. With smart filtering, it can disregard uninteresting hot objects such as the warm exhausts of passing work vehicles, so you'll receive fewer false notifications.

Depend on it - robust and secure

Ideal for installation in harsh environments, this robust temperature measuring camera is highly resistant to corrosion. It offers great reliability and includes built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Electronic image stabilization (EIS) provides smooth video even in scenes with vibrations. Furthermore, thanks to edge-to-edge technology it's possible to connect a network speaker to enable audio alarms.

  • Features Uncooled Microbolometer sensor
  • Up to 768 x 576 resolution for surveillance in real-time

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Storage
Storage TypeMemory Card
Technical Information
HD RecordingNo
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Display & Graphics
Color SupportedColor
Image Sensor TypeUncooled Microbolometer
Field of ViewHorizontal field of view: 55°
Environmental Conditions
Minimum Operating Temperature-40°F (-40°C)
Maximum Operating Temperature140°F (60°C)
Maximum Operating Humidity100%
Lens
Lens TypeFixed
Maximum Focal Length7 mm (0.28")
Lens IncludedYes
Power Description
Input Voltage28 V DC
10 V DC
Power Source TypePoE
DC
Physical Characteristics
Weight (Approximate)3.09 lb (1400 g)
DurabilityCorrosion Resistant
Impact Resistant
Length10.71" (272 mm)
Diameter5.20" (132 mm)
Product ColorWhite
Color FamilyWhite
General Information
Product TypeNetwork Camera
Manufacturer Part Number02174-001
Manufacturer Website Addresshttp://www.axis.com
ManufacturerAxis Communications
Product ModelQ1961-TE
Product NameQ1961-TE Thermal Camera
Product SeriesQ19
Brand NameAXIS
Video
Video FormatsH.264
H.264B
H.264 (MPEG-4 Part 10/AVC)
H.264H
H.264M
Zipstream
Motion JPEG
H.265 (MPEG-H Part 2/HEVC)
H.265 (MP)
H.265
Maximum Video Resolution768 x 576
Maximum Frame Rate30 fps
Thermal Video Resolution384 x 288
Miscellaneous
FeaturesActive Tampering Alarm
Motion Detection
Mirror
Heater
Fire Detection
Electronic Image Stabilization
Auto Gain Control
Audio Detection
SD Card Local Storage
Privacy Masking
TAA CompliantYes
Indoor/OutdoorOutdoor
Impact Protection RatingIK10
Ingress Protection RatingIP67
IP66
