À propos du produit
High-Performance Dual-HDMI Video via MST

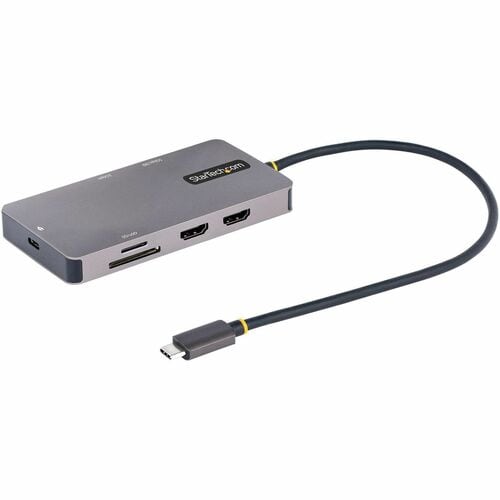

The compact docking station connects your laptop to two HDMI monitors, creating a powerful workstation. It supports DP 1.4 Alt Mode with DSC and MST, for uncompressed video performance up to dual 4K (3840 x 2160p) at 60Hz, depending upon your host computer. The dock also supports the use of ultrawide monitors.
Video performance, such as resolution and refresh rate across both monitors, is dependent upon your host computer and its video controller. A source device with support for DisplayPort 1.4, paired with DSC and DP 1.4 enabled HDMI displays, are required to achieve dual 4K 60Hz. Please review the specifications of your computer and displays, to determine expected video performance. StarTech.com performs rigorous performance benchmarks with all major computer models. The video performance results of our testing are listed below:
Dual Display
Host Computer ModelMonitor #1 Maximum Resolution
Monitor #2 Maximum Resolution Lenovo X1 Carbon G9 3840x2160@60Hz 3840x2160@60Hz HP EliteBook 850 G8 3840x2160@60Hz 3840x2160@30Hz Dell XPS 9310 2560x1600@60Hz 2560x1600@60Hz
Single Display
Host Computer Model
Monitor Maximum Resolution Dell XPS 9310 3840x2160@60Hz Lenovo X1C G9 3840x2160@60Hz HP EliteBook 850 3840x2160@60Hz HP ProBook 450 G8 3840x2160@60Hz Surface Laptop 3 3840x2160@60Hz Dell G5 SE (AMD) 3840x2160@60Hz
Connect Your Devices
The USB-C to USB 3.2 Gen 1 (5Gbps) hub provides two USB-A ports for connecting your USB devices.
Multiple Use Cases
A versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom. It's portable enough to be carried in your bag / backpack for mobile use. The USB-C dock can operate with bus-power alone, or with a USB-C power adapter connected to the pass-through port - for full laptop and peripheral charging. The lightweight docking station features a built-in 12 in (30 cm) USB-C host cable.
More from the Manufacturer

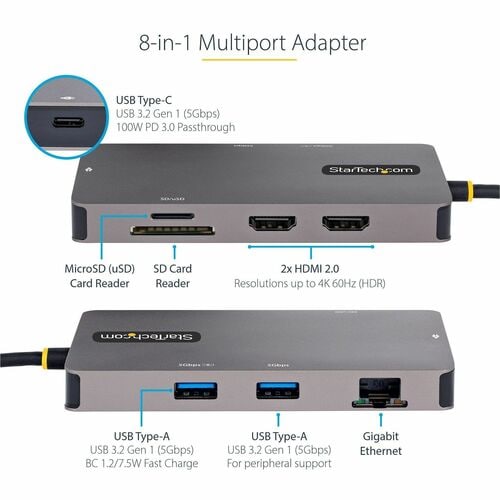

- 8-IN-1 MULTIPORT ADAPTER: USB-C dock features DP 1.4 Alt Mode w/DSC & MST supporting up to Dual 4K 60Hz (4K 30Hz w/DP1.2) HDMI 2.0b HDR video; 2-port USB-A 3.2/3.1 Gen 1 5Gbps hub; 1x BC 1.2/7.5W Fast Charge; 100W USB PD, SD/MicroSD card reader, GbE
- HIGH-PERFORMANCE DUAL VIDEO: Supports dual-HDMI 2.0b uncompressed video up to 4K 60Hz via MST (video performance depends upon host computer's GPU, DP 1.4 w/DSC req. for dual 4K 60Hz); Supports ultrawide 21:9 aspect ratios & lower resolutions such as 1080p

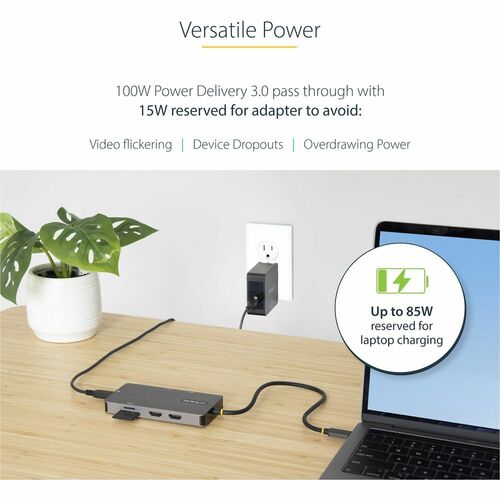

- VERSATILE POWER: USB bus powered or via external USB-C power adapter; 100W USB Power Delivery 3.0 pass through w/15W reserved for adapter to avoid video flickering, device dropouts, or overdrawing power common in other hubs; up to 85W for laptop charging

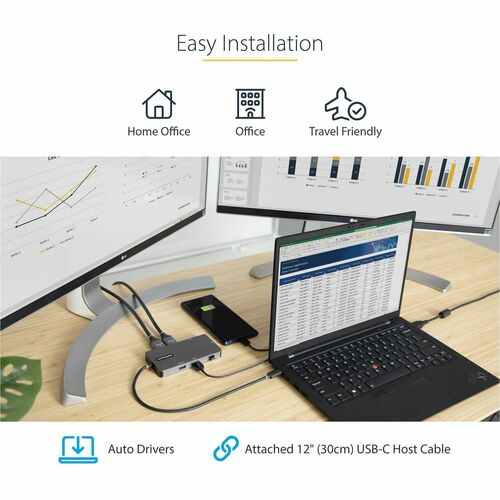

- EASY INSTALLATION: Extended connectivity with attached 12in (30cm) USB Type-C host cable; Automatic driver setup; Ideal for office or work-from-home workstations, and presenting from a boardroom, or conferencing with remote workers using Zoom/MS Teams

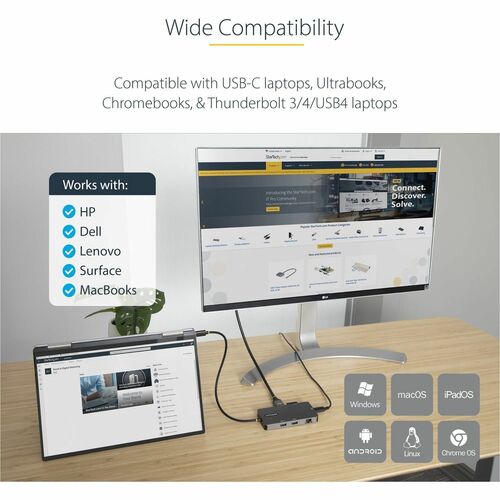

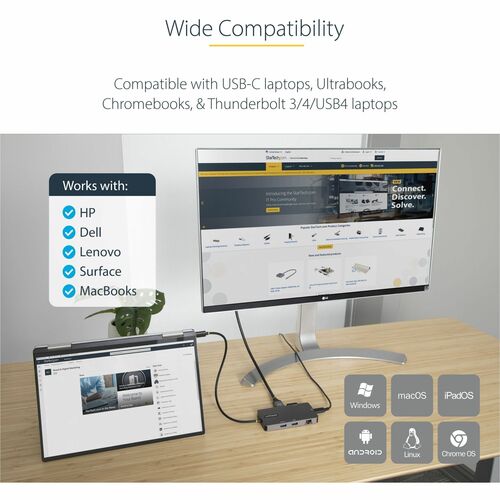

- COMPATIBILITY: USB-C travel docking station is compatible with Windows-based USB-C & Thunderbolt 3/4/USB4 laptops such as HP, Dell, Lenovo, Surface Laptop 3 and up/Pro 7 and up, Chromebooks, plus support for Windows, Chrome OS
- CONNECTIVITY TOOLS: This mini dock features a software application that improves performance and security. It includes a MAC Address Changer, USB Event Monitoring, Windows Layout, and Wi-Fi Auto Switch utilities.
Spécifications techniques
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Physical Characteristics | |
| Weight (Approximate) | 5.80 oz (164.43 g) |
| Form Factor | Portable |
| Height | 0.60" (15.24 mm) |
| Width | 5.70" (144.78 mm) |
| Product Color | Space Gray |
| Color Family | Gray |
| Software | |
| Operating System Supported | Windows 7 |
| Windows 8 | |
| Windows 8.1 | |
| Windows 11 | |
| ChromeOS | |
| Windows 10 | |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | 120B-USBC-MULTIPORT |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Docking Station |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Compatible Products:
|
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Brand Compatibility | Dell |
| Microsoft | |
| Lenovo | |
| HP | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Technical Information | |
| Device Supported | Notebook/Tablet PC |
| Connectivity Technology | Wired |
| Memory Card Supported | SDHC |
| SD | |
| microSD | |
| SDXC | |
| Memory Card Reader | Yes |
| Number of Displays Supported | 2 |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K |
| Interfaces/Ports | |
| Host Interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| HDMI | Yes |
| HDMI Version | 2.0 |
| Network (RJ-45) | Yes |
| Number of HDMI Outputs | 2 |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 - Alimentación USB tipo C (24 pines) |
| Number of USB Type-C Ports | 2 |
| Number of USB Type-A Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 1 |
