À propos du produit

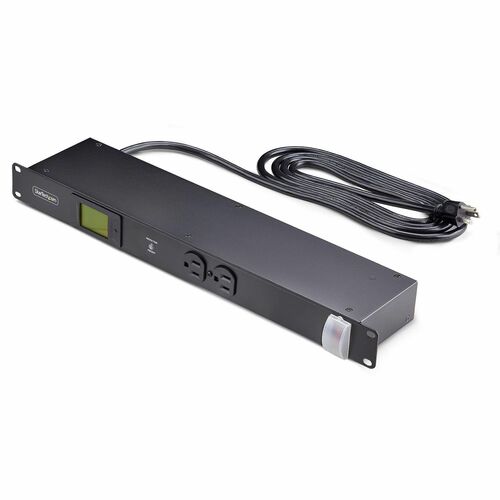

This 1U Rack Mount Metered PDU features a built-in 8ft (2.4m) NEMA 5-15P power cord and 12x NEMA 5-15R outlets, while the surge protection helps ensure the safe and stable operation of critical equipment. A large backlit LCD provides live readings of electrical parameters for connected devices.
Metered Power Distribution Unit
Metering is essential for maintaining equipment performance and stability by enabling real-time reads of key electrical parameters: voltage (V), current (Amp), wattage (W), and power factor (PF). The power factor indicates the efficiency of connected devices, with values closer to 1.0 being the most efficient. Monitoring enables early detection of potential issues, efficient load management, and insights for optimizing energy use.

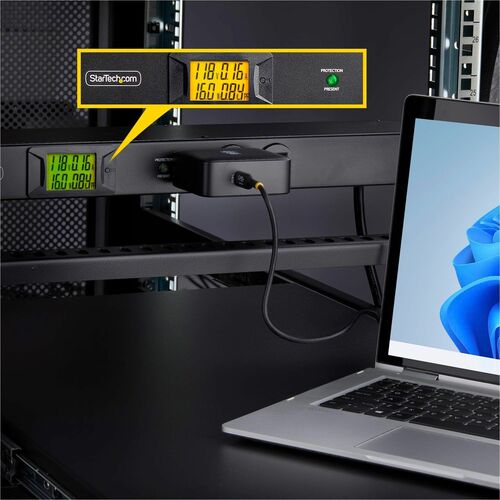

The large-font display provides real-time monitoring of key electrical parameters, while the on-demand backlight helps with visibility in dimly lit scenarios.
Enhanced Power Safety
The robust 15A circuit breaker features a mechanical trigger that quickly responds to surges, providing essential protection for the connected. The resettable breaker has a safety cover that prevents unintentional resets. A bright LED indicator confirms active surge protection

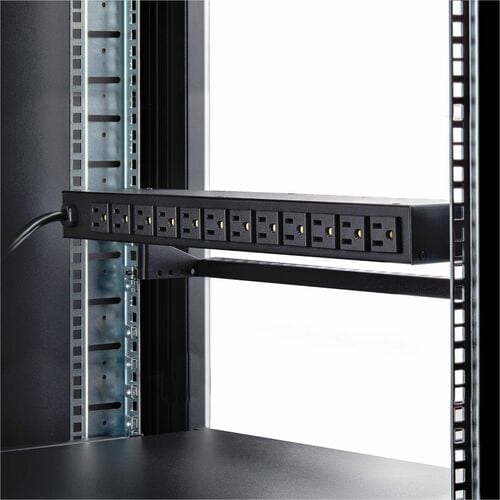

Rack Mount Design

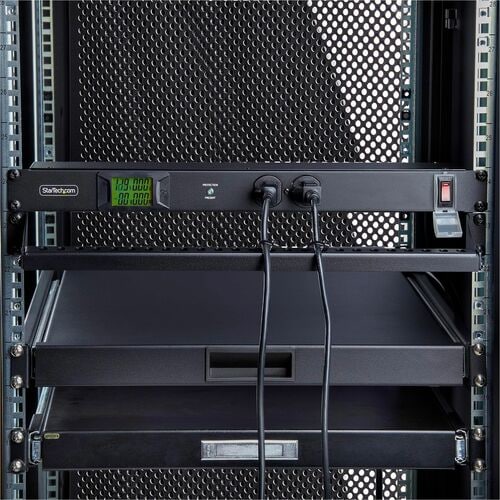

1U horizontal rackmount PDU is compatible with EIA-310-compliant 19-inch 2 or 4-post server racks or cabinets that are 4-inch (10.1cm) or deeper
The TAA-compliant cabinet power strip is constructed from cold-rolled steel that ensures sturdiness and features a textured finish that enhances long-lasting durability. The PDU is equipped with a total of eight electrical outlets, including six positioned at the rear and two at the front, providing ample connectivity options for various devices in server rooms, data centers, and other professional environments.

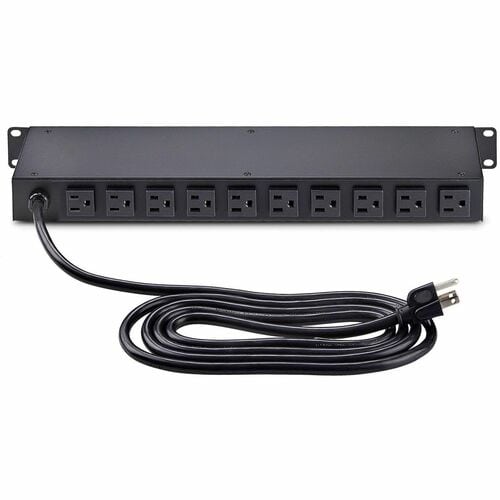

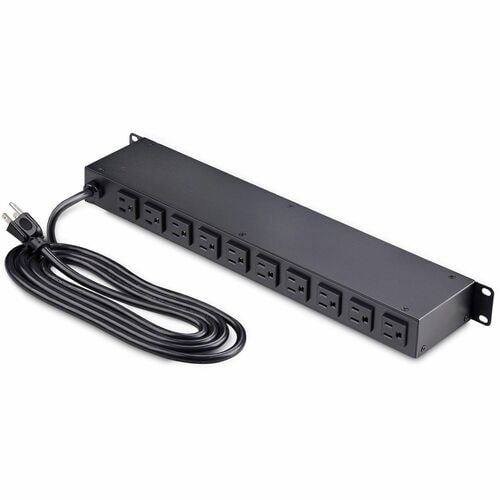

- 12-OUTLET 1U RACK MOUNTED METERED PDU: 12x NEMA 5-15R power outlets; 125V max and 15A circuit breaker; Built-in 8ft (2.4m) NEMA 5-15P power cord; Ideal power supply strip for 19"" racks in server rooms/closets, data center, and testing labs
- METERED POWER DISTRIBUTION UNIT: Large-font display with optional backlight for real-time monitoring of key power parameters: voltage (V), current (A), wattage (W), and power factor (PF), which indicates the efficiency of the connected devices
- SURGE PROTECTOR: Self-tripping MOV design with mechanical trigger instantly cuts power during surges to protect connected devices; Includes LED status indicator, resettable 15A circuit breaker, and safety cover to prevent accidental resets

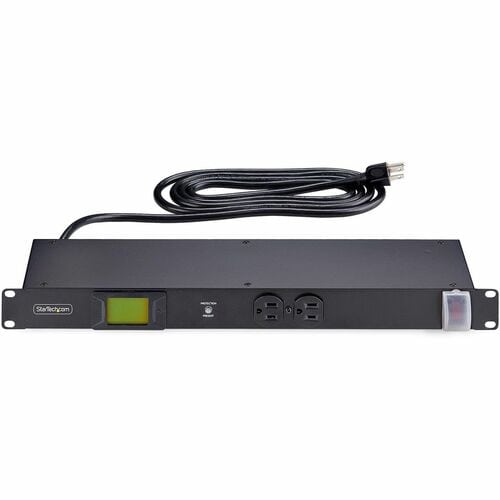

- RACK MOUNTABLE: 1U horizontal rackmount PDU for EIA-310-compliant 19-inch server racks/cabinets that are 4in (10.1cm) or deeper; Made of cold-rolled steel w/textured finish for sturdiness & long-lasting durability; 6x rear and 2x front electrical outlets
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA-compliant rack mount PDU is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Spécifications techniques
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | 14°F (-10°C) |
| Maximum Storage Temperature | 122°F (50°C) |
| Minimum Operating Humidity | 5% |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Application/Usage | Data Center |
| Server Rack/Cabinet | |
| Package Contents |
|
| Certifications & Standards |
|
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Power Source | Power Supply |
| Output Voltage | 125 V AC |
| 120 V AC | |
| Input Current | 15 A |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | 12NM8-RACK-MOUNT-PDU |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 12-Outlets PDU |
| Brand Name | StarTech.com |
| Technical Information | |
| Features | LCD Display |
| LED Status Indicator | |
| Protection Type | Surge Protection |
| Circuit Breaker | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| PDU Type | Metered |
| Receptacle Detail | 12 x NEMA 5-15R |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| Physical Characteristics | |
| Weight (Approximate) | 4.40 lb (1995.81 g) |
| Length | 3.80" (96.52 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 8 ft (2.44 m) |
| Height | 1.70" (43.18 mm) |
| Width | 19" (482.60 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
