À propos du produit

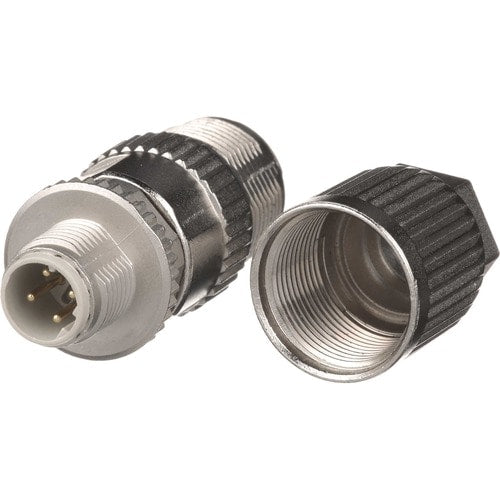

The M12 D-Code modular plug is field terminable for use with industrial grade, 26/7 - 22/7 AWG stranded, Cat 5e UTP or shielded copper cable. The terminable plug is constructed of a zinc cast housing with a 360° shield. The plug has an ingress protection rating of IP65/IP67 and offers an extended temperature range as required for more demanding applications. It is easily attachable without any special tools and is capable of termination to a 2-pair stranded or solid twisted-pair copper cable.
- Connector with Nickel plating
- Terminate fascicle of network cables with this connector
Spécifications techniques
| Miscellaneous | |
| Compatibility | Panduit Cables:
Panduit Devices:
|
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | Network Connector |
| Manufacturer Part Number | ISPS5E44MFA |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | Industrial M12 D-Code Field Term Modular Plug |
| Brand Name | IndustrialNet |
| Physical Characteristics | |
| Material Details | die-cast Zinc - Housing |
| Height | 0.77" (19.56 mm) |
| Width | 0.59" (14.99 mm) |
| Depth | 2.07" (52.58 mm) |
| Product Color | Metallic |
| Color Family | Other |
| Product Material | Die-cast Zinc |
| Technical Information | |
| Connector Details | 1 x M12-D - Male |
| Shielding | Yes |
| Connector Type | M12-D - Male |
| Features | PoE |
| Stranded | |
| EMI/RF Protection | |
| Connector Plating | Nickel |
| Chrome | |
| Ingress Protection (IP) Rating | IP65 |
| IP67 |
