À propos du produit

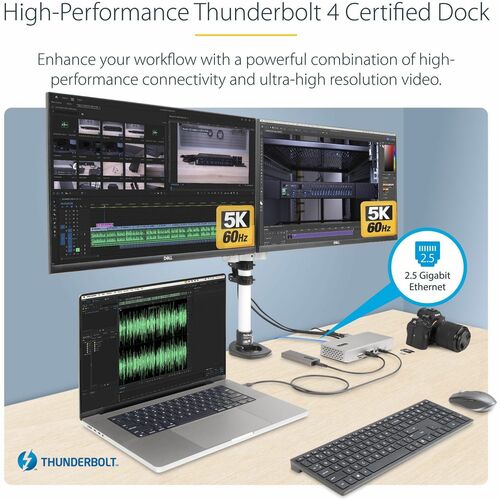

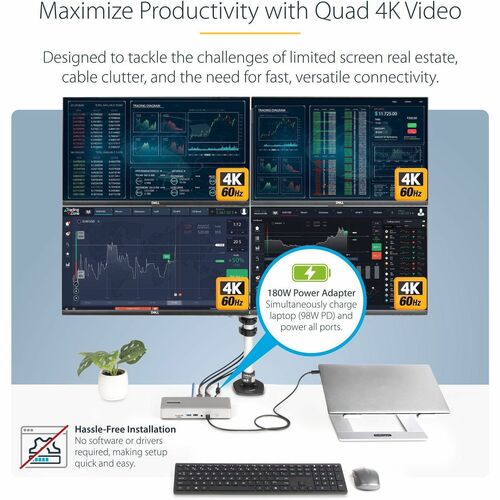

The dock is equipped with 2x HDMI and 2x DisplayPort video outputs for connecting multiple monitors to the host computer. The dock offers video flexibility, supporting single, dual, triple, or quad monitor configurations. With an Intel 12th Gen processor or higher that supports DP 1.4 with DSC, the docking station can support a quad-monitor configuration with resolutions up to 4K 60Hz. Quad displays are also available at lower resolutions or refresh rates on computers without DSC or with earlier Intel revisions. In addition, the dock supports a single 8K 60Hz display on either of the HDMI output ports.

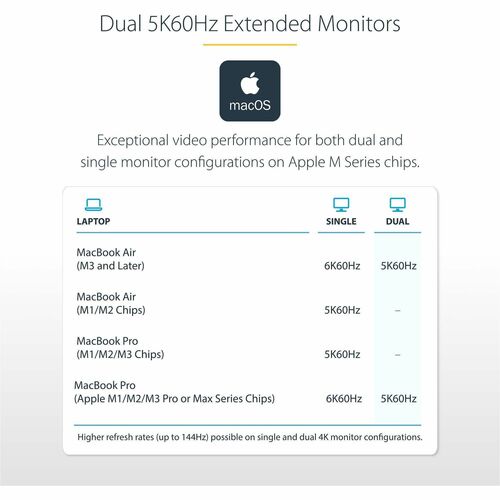

Apple computers equipped with M1, M2, M3 or M4 Max/Pro processors support dual displays. For Apple computers featuring the M-series base processor a single display is supported.
Port ConnectivityThe docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.

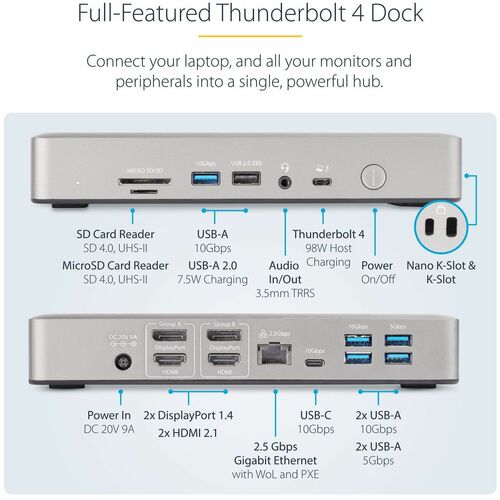

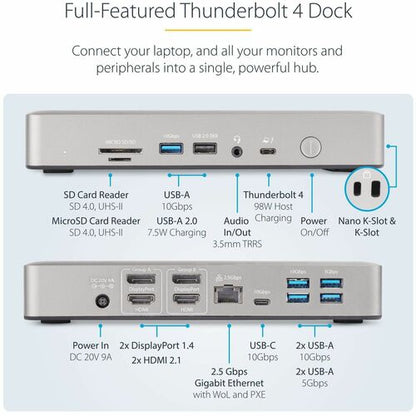

The dock features:
- 2x HDMI ports to connect displays
- 2x DisplayPort ports to connect displays
- 6x USB 3.2 ports (3x 10Gbps Type-A, 1x 10Gbps Type-C, 2x 5Gbps Type-A) to connect USB peripheral devices
- 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging battery powered USB devices
- 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)
- 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards
- 1x Micro Secure Digital (microSD) 4.0/UHS-II card reader to externally access mSD, mSDHC and mSDXC memory cards
- 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset
Includes a 180W power adapter and supports 98W USB power delivery. This enables the dock to charge the laptop, with enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools AppDeveloped to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
- HIGH-PERFORMANCE THUNDERBOLT 4 DOCK: Easy driverless setup; 2x DisplayPort; 2x HDMI; 7-Port USB Hub (3x USB-A 10Gbps/1x USB-C 10Gbps/2x USB-A 5Gbps/1x USB 2.0); SD & mSD card readers; 2.5GbE; Lock slots (k-slots); 3.5mm Headset jack

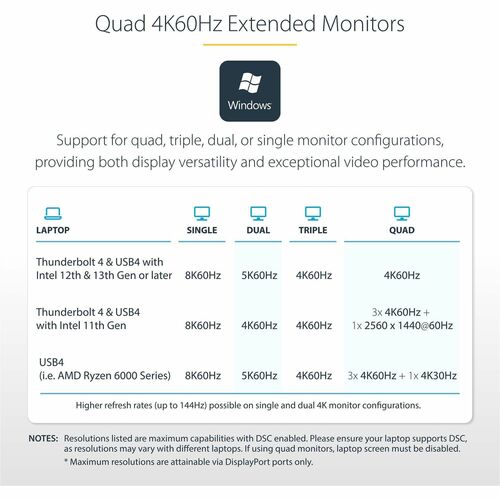

- MULTI-MONITOR FLEXIBILITY: Up to quad 4K 60Hz w/Intel 12th Gen CPU (or higher) supporting DP 1.4 w/DSC; Quad displays at lower resolutions or refresh-rates without DSC or with Intel 11th gen CPU (or lower); Single HDMI display up to 8K 60Hz or 4K 144Hz
- COMPATIBILITY: Compatible with Thunderbolt or USB4 laptops with Windows, macOS, or Ubuntu; Quad display on Windows laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later
- 98W POWER DELIVERY: Includes fully spec'd power adapter to simultaneously charge laptop (98W PD) and power all ports; Downstream USB 2.0 port supports 7.5W (1.5A) for charging mobile devices or other battery-powered devices

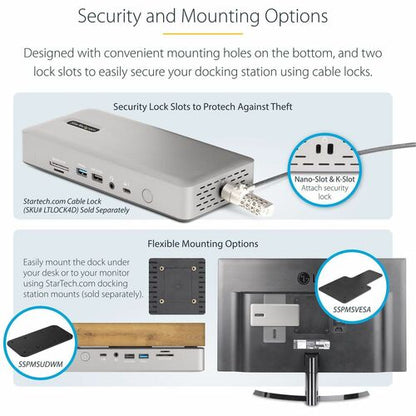

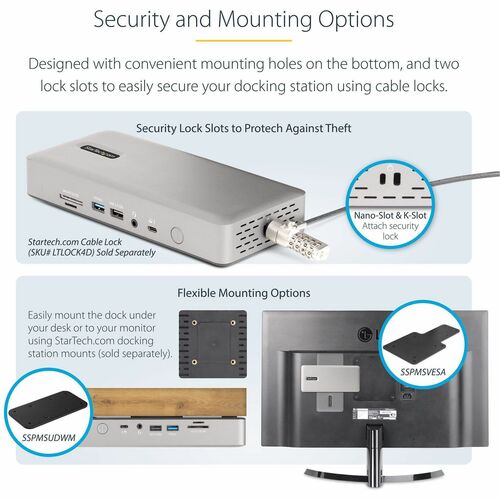

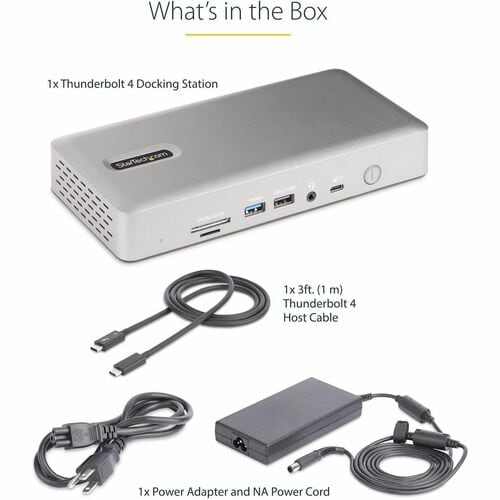

- IT PRO ADVANTAGES: Includes 3.3ft/1m TB4 host cable; Mounting holes for optional brackets (SSPMSVESA/SSPMSUDWM); K-Slots for lock; Connectivity Tools software w/MAC Address Pass-Through, USB Event Monitoring, WiFi Auto Switching & Windows Layout utilities
Spécifications techniques
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 180 W |
| Input Voltage Detail | 120 V AC |
| 230 V AC | |
| Power Source Type | Power Adapter |

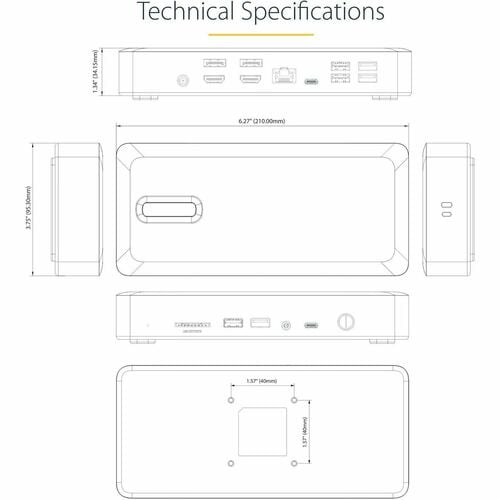

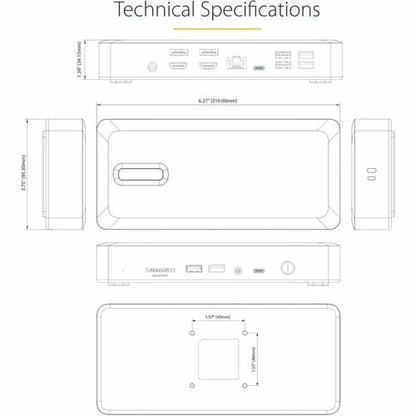

| Physical Characteristics | |
| Weight (Approximate) | 7.10 oz (201.28 g) |
| Height | 1.40" (35.56 mm) |
| Width | 8.30" (210.82 mm) |
| Product Color | Space Gray |
| Color Family | Gray |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | 132N-TB4USB4DOCK |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Docking Station |
| Brand Name | StarTech.com |
| Software | |
| Operating System Supported | macOS Monterey |
| macOS Sonoma | |
| macOS Ventura | |
| Ubuntu | |
| Windows 10 | |
| Windows 11 | |
| macOS Big Sur | |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Compatible Devices:
|
| Environmentally Friendly | Yes |
| Brand Compatibility | Apple |
| Dell | |
| Lenovo | |
| HP | |
| Intel | |
| Kensington Security Slot | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Technical Information | |
| Cable Length | 3.3 ft (1 m) |
| Device Supported | Notebook/Tablet/Monitor/Headset/Speaker/Smartphone |
| Connectivity Technology | Wired |
| Features | Power Delivery Pass-through |
| Charging Capability | Yes |
| Memory Card Supported | microSDXC |
| SD | |
| SDHC | |
| SDXC | |
| microSDHC | |
| Micro Size MultiMediaCard (MMC) | |
| microSD | |
| Memory Card Reader | Yes |
| Maximum Data Transfer Rate | 5 GB/s |
| Number of Displays Supported | 4 |
| Supported Resolutions | 3840 x 2160 |
| 7680 x 4320 | |
| Screen Mode Supported | 8K |
| 4K @ 60Hz | |
| Management Features | MAC Address Pass-through |
| PXE Boot | |
| Wake-on-LAN | |
| Security Slot Type | Kensington Security Slot |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 4 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of HDMI Outputs | 2 |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Thunderbolt | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps) |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 1 |
| Number of USB Type-A Ports | 6 |
| Thunderbolt Ports Quantity | 1 |
| USB Power Delivery | 98W |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Number of Thunderbolt 4 Ports | 1 |
| USB Type-A | Yes |
