À propos du produit

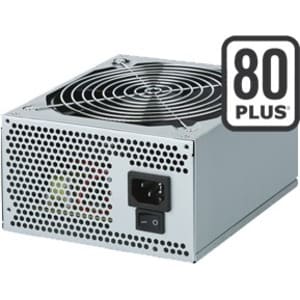

Coolmax ZX series offer 80 PLUS levels of energy efficiency, massive 12V single rail output gave you the power you needs and super quiet 140mm ball bearing fan create a proper airflow inside the case. 6+2 PCI-E connector is suitable for most demanding SLI or CrossFire systems.
- 80PLUS Standard Certified
- 140mm double ball bearing fan
- 80 PLUS Certified - Up to 80% efficiency
- Single +12V rail design
- Active Power Factor Correction (PFC)
- Supports ATX12V 2.2 and EPS12V 2.91 compliant
- Auto switching circuitry for universal AC input from 100-240V
- Protection: OCP/ OVP/ SCP/ OPP/ OTP
- Support NVIDIA SLI or ATI CrossFire system
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Standard |
| Physical Characteristics | |
| Weight (Approximate) | 1.81 kg |
| Form Factor | Internal |
| Height | 3.30" (83.82 mm) |
| Width | 5.90" (149.86 mm) |
| Depth | 6.50" (165.10 mm) |
| Interfaces/Ports | |
| Receptacles | 5 x 4-pin LP4 Peripheral Device |
| 5 x 15-pin Serial ATA | |
| 1 x 6+2pin PCI-E | |
| 1 x 6-pin PCI-E | |
| 1 x 4-pin SP4 Floppy Drive | |
| 1 x 4+4pin ATX12V Motherboard | |
| 1 x 20+4pin ATX Motherboard | |
| Plug/Connector | On/Off Switch |
| General Information | |
| Product Type | Power Supply |
| Manufacturer Part Number | 14505 |
| Manufacturer Website Address | http://www.coolmaxusa.com |
| Packaged Quantity | 5 |
| Manufacturer | Coolmax Technology, Inc |
| Product Model | ZX-600 |
| Product Name | 600W 80plus 140mm Fan ATX Power Supply ZX-600 |
| Product Series | ZX |
| Brand Name | Coolmax |
| Technical Information | |
| Efficiency | 80% |
| Protection Type | Over Voltage |
| Over Temperature | |
| Over Power | |
| Over Current | |
| Short Circuit | |
| Number of Fans | 1 |
| Power Factor Correction (PFC) | Active |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Specification Compliance | ATX12V/EPS12V |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Power | 600 W |
| Output Voltage | 5 V DC |
| 12 V DC | |
| 3.3 V DC | |
| -12 V DC | |
| Output Current | 800 mA |
| 3 A | |
| 25 A | |
| 40 A | |
| Input Voltage Range | 100 V AC - 240 V AC |
| Number of +12V Rails | 1 |
| Input Voltage Type | AC |
| Output Voltage Detail | 5 V DC @ 3 A |
| 5 V DC @ 25 A | |
| 3.3 V DC @ 25 A | |
| 12 V DC @ 40 A | |
| -12 V DC @ 800 mA |
