À propos du produit

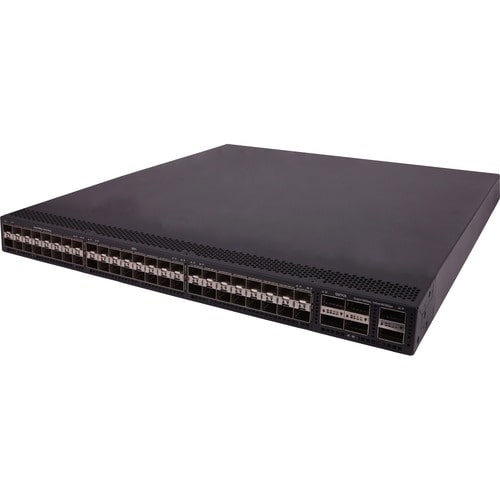

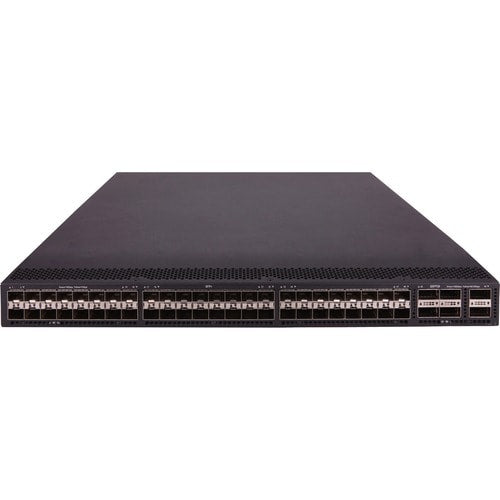

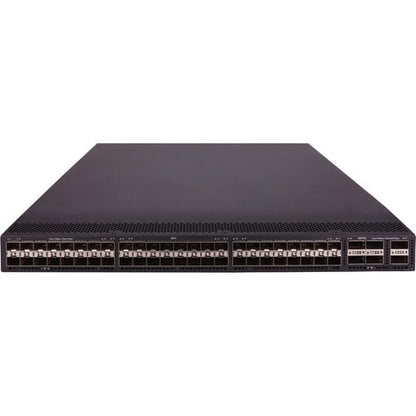

The FlexFabric 5940 Switch is suited for deployment at the aggregation or server access layer of large enterprise data centers, or at the core layer of medium-sized enterprises. It is optimized for high-performance server connectivity, convergence of Ethernet and storage traffic, and virtual environments.
Features
High-Density, Advanced, Datacenter Switches
The HPE FlexFabric 5940 Switch Series enables customers to scale their server-edge 10/40/100 GbE ToR deployments with high-density 48 x 10 GbE with 6 x 40GbE ports, 48 x 10 GbE with 6 x 100GbE ports, and 32 x 40 GbE ports, delivered in a 1RU design.
High-Performance Datacenter SwitchingThe HPE FlexFabric 5940 Switch Series delivers up to 2.56 Tbps switching capacity for the most demanding data center applications.
It supports up to 1904 MPPS throughput for data-intensive environments.
Low latency, under 1µs for 40GbE, gives your business agility.
VXLAN support for network virtualization and overlay solutions.
OVSDB for dynamic VXLAN tunnel management.
Business Agility and Resilience with Comware 7The HPE FlexFabric 5940 Switch Series delivers Intelligent Resilient Fabric (IRF) <50 msec convergence time enabling faster application response time.
The In Service Software Update (ISSU) enables high availability with modular updates accomplished without a reboot or power cycle, in the background.
Simplicity and Lower TCOHPE FlexFabric 5940 Switch Series simplifies switch management by up to 88% with 9-unit Intelligent Resilient Fabric (IRF).
No extra hidden cost with simple one license per switch for all OS features.
All switch ports are active and ready to use without need for activation licenses.
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| I/O Expansions | |
| Expansion Slot Type | QSFP+ |
| SFP+ | |
| Number of SFP+ Slots | 48 |
| Total Number of Expansion Slots | 54.0 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 6 x 100 Gigabit Ethernet Expansion Slot |
| 48 x 10 Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 100GBase-X |
| 10GBase-X | |
| Ethernet Technology | 100 Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Physical Characteristics | |
| Weight (Approximate) | 24.25 lb (10999.614973 g) |
| Form Factor | Rack-mountable |
| Height | 1.72" (43.69 mm) |
| Width | 17.32" (439.93 mm) |
| Depth | 18.11" (459.99 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | JH390A |
| Manufacturer Website Address | http://www.hpe.com |
| Packaged Quantity | 1 |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 5940 48SFP+ 6QSFP28 |
| Product Name | FlexFabric 5940 48SFP+ 6QSFP28 Switch |
| Product Line | FlexFabric |
| Product Series | 5940 |
| Brand Name | HPE |
