À propos du produit

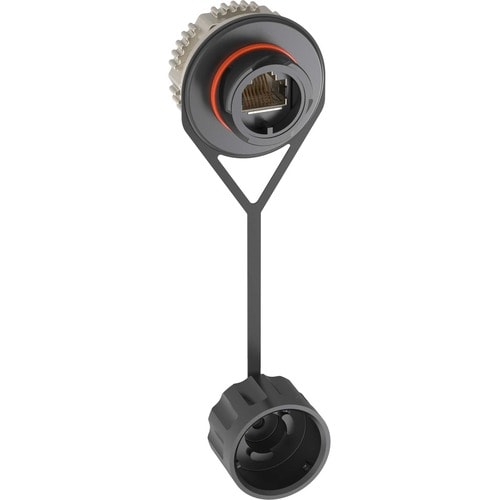

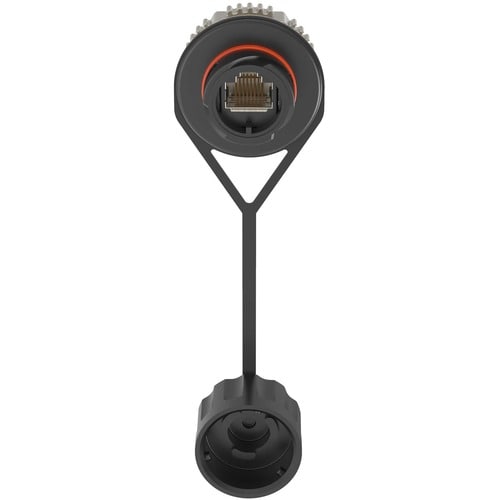

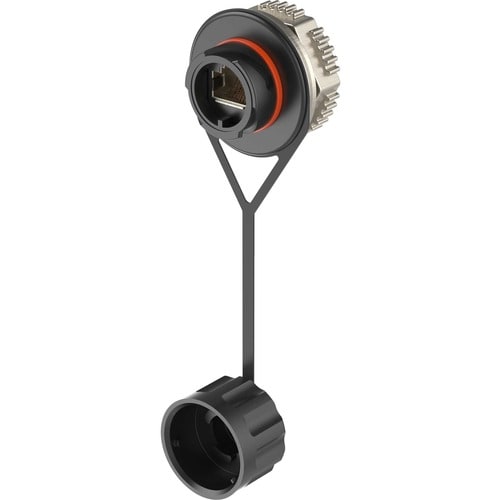

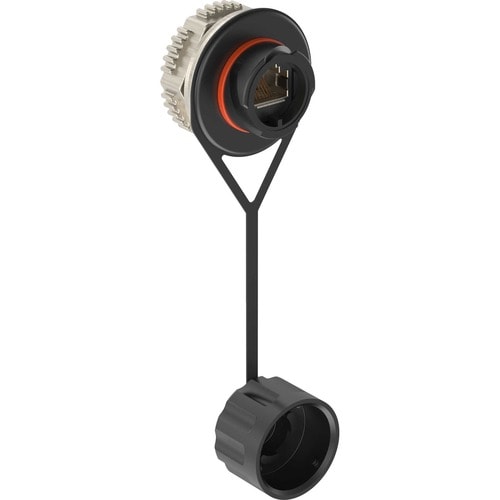

The Category 6A IndustrialNet™ Shielded Coupler Bulkhead RJ45 jack and plug incorporates an IP67 rated seal and is designed to provide protection from dust and temporary immersion in water. Termination to a 4-pair, 24 AWG, 100 Ohm twisted pair cable does not require the use of a punch down tool. The protective cap ensures IP67 protection of the connector and plug in the unmated condition. The shielded coupler bulkhead is black.
- IP/NEMA/UL rated connection:Withstands light wash down and temporary submerged conditions in harsh factory environments without loss of performance when mated to IP67 IndustrialNet™ Patch Cords; Maintains NEMA 4/4X rating when properly installed on NEMA 4/4X enclosures
- Bulkhead anti-rotation washer:Eliminates the potential for module rotation
- Connector mounting nut: Holds bulkhead safely and securely from inside of enclosure
- Robust construction :Plug contact plated with 50 micro inches of gold
- Bayonet style interface :Provides positive reinforcement during mated condition; rated to 100 mating cycle
- Protective cap :Maintains IP67 seal during unmated connection
- Utilizes patented Giga-TX ™ Technology :Optimizes performance by reducing conductor untwist to less than 1/8"
- Forward motion termination: Speeds installation and places no impact on critical components for maximum reliability
- Universal wiring scheme :Termination cap is color coded for T568A and T568B wiring schemes
- Standard mounting :Bulkhead connector fits into standard IEC 1-13/64" (30.5mm) diameter mounting hole or optional faceplate
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Panduit IAEBHUSBAA Bulkhead Coupler Panduit Network Cables:
|
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Height | 5.37" (136.40 mm) |
| Width | 1.49" (37.85 mm) |
| Depth | 1.67" (42.42 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Plastic |
| Polybutylene Terephthalate (PBT) | |
| General Information | |
| Product Type | Network Connector |
| Manufacturer Part Number | IAEBHC6XS |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | Shielded Coupler Bulkhead, Cat 6A, RJ45, BL |
| Product Series | TX6A |
| Brand Name | IndustrialNet |
| Technical Information | |
| Connector Details | 1 x RJ-45 Network - Female |
| Impedance | 100 Ohm |
| Shielding | Yes |
| Connector Type | RJ-45 Network - Female |
| Features | PoE |
| Moisture Resistant | |
| Dust Protection | |
| Temperature Resistant | |
| Bulkhead | |
| Anti-rotation | |
| Protective Cap | |
| Water Resistant | |
| Vibration Resistant | |
| Chemical Resistant | |
| Contact Plating | Gold |
