À propos du produit

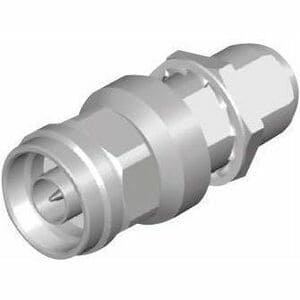

The SA-SP-SJ is a single strike gas discharge surge arrester which offers a light duty surge protection solution. It is fitted with SMA connectors allowing it to be mounted in line between the antenna and cables or coaxial cable and radio/router device.
The surge arrester can operate up to 5.8GHz with low return and insertion loss. It has a bulkhead fitting which can be used to mount and ground the device to conductive panels of up to a max 4mm (0.16") thickness - alternatively a heavy duty grounding tag can be fitted.
- Coaxial surge arrester
- Up to 5.8GHz operation
- SMA (m) to SMA(f)
- Bulkhead type panel mounting
Spécifications techniques
| Environmental Conditions | |
| Maximum Operating Temperature | 176°F (80°C) |
| Technical Information | |
| Dataline Protection | Coaxial |
| Receptacles | SMA |
| Physical Characteristics | |
| Height | 0.95" (24.13 mm) |
| Width | 2.06" (52.32 mm) |
| Product Material | Brass |
| General Information | |
| Product Type | Surge Protector Module |
| Manufacturer Part Number | SASPSJ |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Manufacturer | Panorama Antennas Ltd |
| Product Name | Coaxial Surge Arrester |
| Brand Name | Panorama Antennas |
