À propos du produit

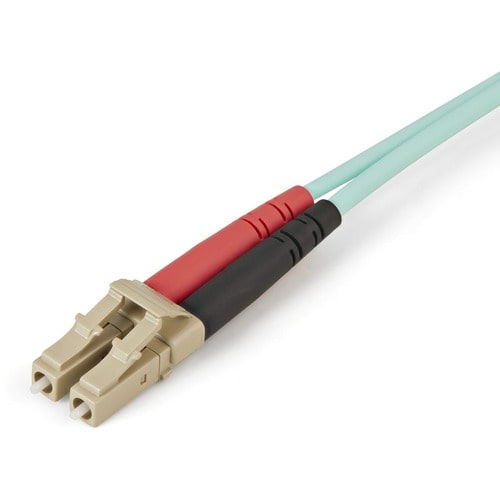

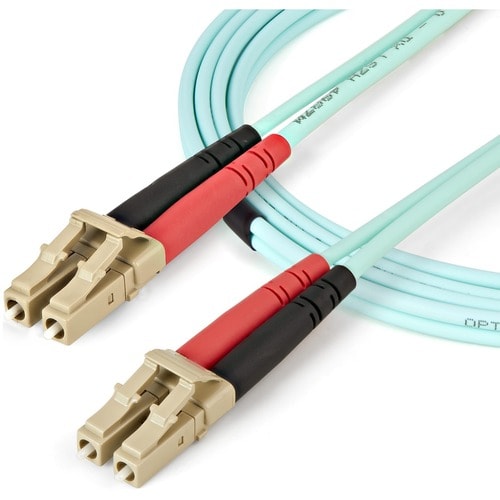

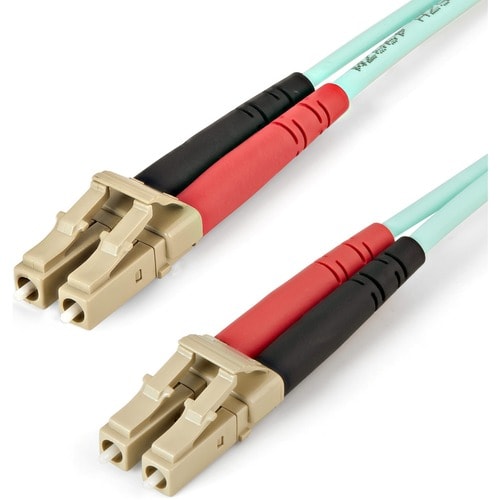

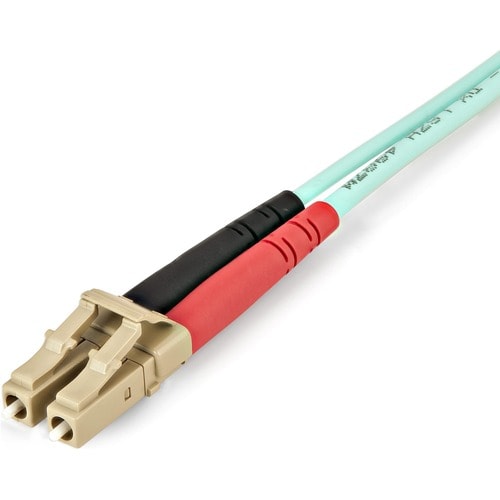

This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP plus and QSFP plus transceivers in 40 and 100 Gigabit networks. The OM4 Duplex Multimode Fiber Optic Cable with LC connectors supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources. It is backward-compatible with your existing 50/125 equipment. Fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Compatible with 850nm VCSEL source, the network cable is ideal for use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Laser-optimized multimode fiber is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.
More from the Manufacturer
- OM4 (50/125) 3500MHz multimode fiber
- Backward compatible with your existing 50/125 equipment
- Laser-optimized multimode fiber (LOMMF)
- Compatible with 850nm VCSEL source
- Attenuation loss meets or exceeds industry standards
Spécifications techniques
| Miscellaneous | |
| Country of Origin | China |
| Physical Characteristics | |
| Weight (Approximate) | 0.70 oz (19.84 g) |
| Product Color | Aqua |
| Color Family | Green |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | 450FBLCLC1 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 3.3 ft (1 m) |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Network Device |
| Transceiver | |
| Jacket Type | LSZH |
| Features | Corrosion Resistant |
| Flame Retardant | |
| Halogen Free | |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
