À propos du produit

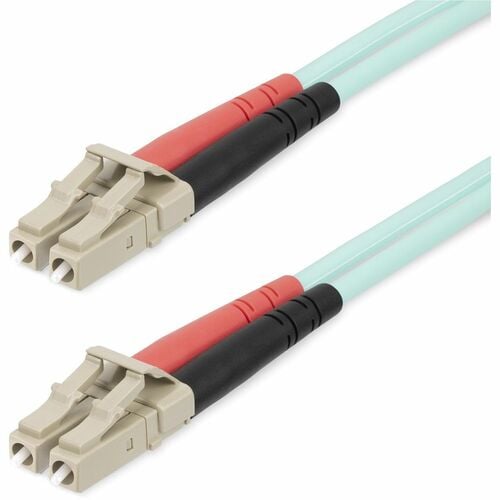

The LC to LC Multimode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 40 and 100 Gigabit networks.
Engineered for Optimal Performance
With laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.
Wide Compatibility
This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, ensuring a reliable connection with legacy fiber environments.
Flame Resistant
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to high heat or in the event of a fire. It enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where building codes are a consideration.
Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
- OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable is immune to EMI and supports up to 100Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors enable quick visual identification of polarity and conversion to simplex cabling

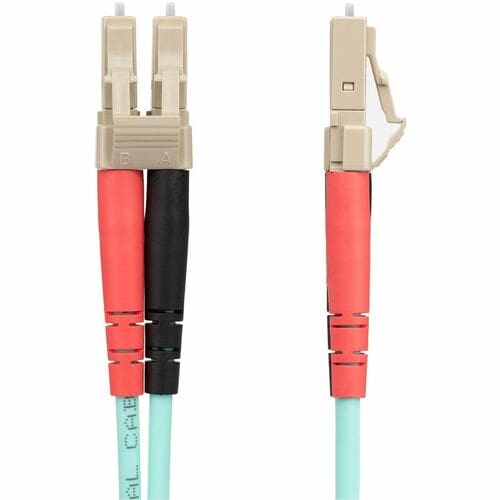

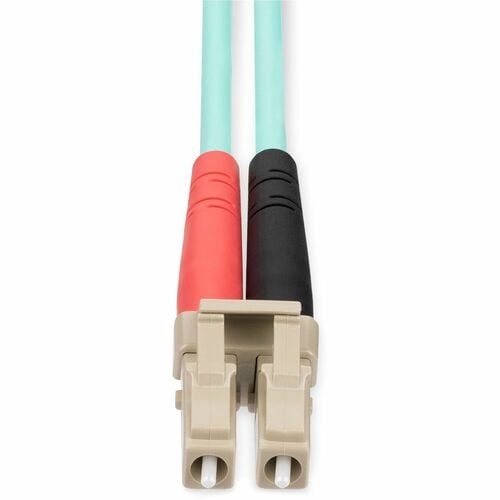

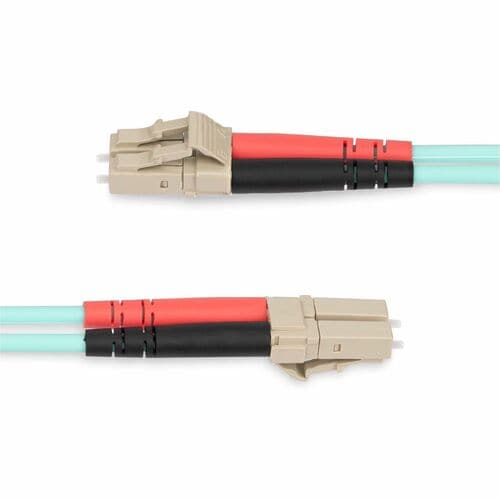

- QUALITY CONSTRUCTION: LC/LC connectors with UPC polished ends significantly improves return loss over PC polish; Robust molded connector strain reliefs minimizes wear from bending; Protective Aramid fiber for increased tensile strength
- SAFETY AND RELIABILITY: Individually tested for signal integrity; LSZH (low smoke zero halogen) jacket does not emit toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 2.3dB/km meets or exceeds industry standards
- WIDE COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
- SPECS: 20m (65ft); Color: Aqua (OM4); LC/LC UPC; 50/125µm Core/Cladding; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHzkm at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Spécifications techniques
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Product Color | Aqua |
| Color Family | Green |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | 450FBLCLC20 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 65.6 ft (20 m) |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Network Device |
| Jacket Type | LSZH |
| Features | UPC Polished Connector |
| Zip Cord | |
| Strain Relief | |
| Molded | |
| Flame Retardant | |
| Bend Resistant | |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | LC/UPC Network - Male |
| Connector Type on Second End | LC/UPC Network - Male |
| Fiber Optic Mode | Multi-mode |
| Fiber Type | Duplex |
| Connector on First End Details | 2 x LC/UPC Network - Male |
| Connector on Second End Details | 2 x LC/UPC Network - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Fiber Category | OM4 |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
