À propos du produit

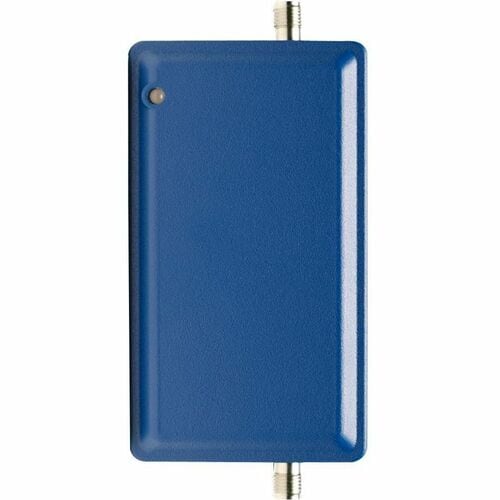

The WilsonPro IoT 2-Band is a "Direct-Connect" solution for cellular network capable equipment and IoT devices. Compatible with Canadian carrier networks using Band 5 (850 MHz) and Band 25/2 (1900 MHz), it connects directly with cellular modems to provide strong, reliable cell signal for successful data transfer.
The IoT 2-Band kit is ideal for ATMs, vending machines, or movie-rental kiosks with access to AC power outlets. Its compact form factor is ideal for custom-designed IoT communication systems built within tightly constrained spaces. ISED certified, the IoT 2-Band allows OEMs to source a compact, powerful, and highly compatible cell signal amplifier that comes ready to deploy. In locations where cellular connectivity is adversely affected by distance to cell towers, terrain obstructions, or building materials (like concrete and steel), the IoT 2-Band is a proven go-to solution.
- Designed to link with a data modem as a direct-connect amplifier
- Improves overall cellular connectivity in weak signal environments
- Configurable to almost any Internet of Things (IoT) installation
- Pre-approved by all major cell carriers under ISED rules
- Bi-directional amplification boosts signals to and from cell towers
- Auto-power control to help ensure maximum signal output
Spécifications techniques
| Interfaces/Ports | |
| RF Connector Type | SMA |
| Miscellaneous | |
| Application/Usage | Automated Teller Machine (ATM) |
| Movie-rental Kiosk | |
| Vending Machine | |
| Package Contents |
|
| Physical Characteristics | |
| Weight (Approximate) | 77.1 g |
| Height | 4" (101.60 mm) |
| Width | 1.75" (44.45 mm) |
| Depth | 0.75" (19.05 mm) |
| Power Description | |
| Input Voltage | 5 V DC |
| 230 V AC | |
| 120 V AC | |
| Power Source | AC/DC |
| Technical Information | |
| Impedance | 50 Ohm |
| Frequency Range | 824 MHz to 894 MHz |
| 1850 MHz to 1995 MHz | |
| Maximum Gain | 15 dB |
| General Information | |
| Product Type | Cellular Phone Signal Booster |
| Manufacturer Part Number | 460209F |
| Manufacturer Website Address | http://www.wilsonelectronics.com |
| Manufacturer | Wilson Electronics |
| Product Model | 460009 |
| Product Name | Pro IoT 2-Band 460209F Cellular Phone Signal Booster |
| Product Line | Pro IoT 2-Band |
| Brand Name | WilsonPro |
