À propos du produit

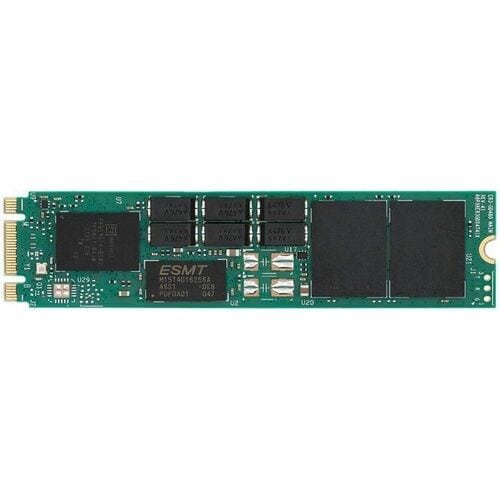

The ThinkSystem M.2 ER3 Read Intensive SATA 6Gb SSDs, in capacities up to 960GB, are 6Gb SATA M.2 drives suitable operating system boot purposes and general data storage functions on ThinkSystem servers.
This product guide provides essential presales information to understand the ER3 M.2 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ER3 M.2 SSDs and consider their use in IT solutions.
- Based on the SSSTC ER3 family of solid state drives
- 3D TLC NAND flash
- End-to-end data protection
- Thermal throttling/sensor
- Power loss protection (PLP)
- High I/O & throughput performance
- Inrush current management
- ROHS-compliant
- Command sets: TRIM, S.M.A.R.T, NCQ
- TCG Enterprise compliant self-encrypting drive (SED)
Spécifications techniques
| Technical Information | |
| Storage Capacity | 240 GB |
| Warranty | |
| Additional Warranty Information | The ER3 M.2 SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty. |
| Interfaces/Ports | |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Miscellaneous | |
| Compatibility | Lenovo ThinkSystem Servers:
|
| Device Supported | Server |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Solid State Drive |
| Manufacturer Part Number | 4XB7A89422 |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem M.2 ER3 240GB Read Intensive SATA 6Gb NHS SSD |
| Brand Name | Lenovo |
| Physical Characteristics | |
| Hot Swappable | Yes |
| Weight (Approximate) | 0.35 oz (10 g) |
| Drive Type | Internal |
| Form Factor | M.2 2280 |
| Length | 3.15" (80 mm) |
| Width | 0.87" (22 mm) |
| Drive Performance | |
| Maximum Read Transfer Rate | 520 MB/s |
| Maximum Write Transfer Rate | 280 MB/s |
| Random 4KB Read | 90000IOPS |
| Random 4KB Write | 10000IOPS |
| Endurance (DWPD) | 1 |
| Endurance (TBW) | 430 TB |
| Endurance Type | Read Intensive |
