À propos du produit

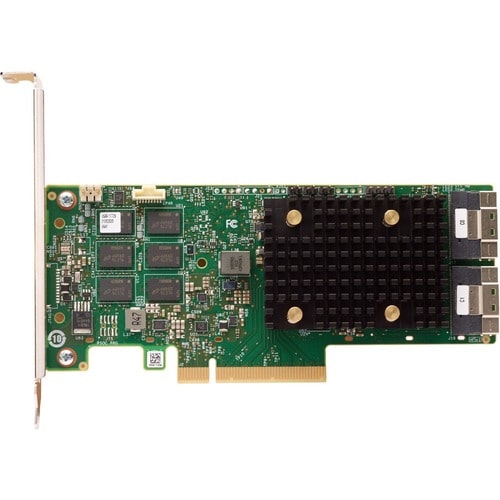

La famille ThinkSystem RAID 940 de contrôleurs RAID SAS PCIe 4.0 12 Gbit/s est composée d'adaptateurs serveur RAID sur puce (ROC) hautes performances pour la connectivité aux disques internes du serveur. Ces adaptateurs prennent en charge les niveaux RAID 0, 1, 10, 5, 50, 6 et 60, et incluent de nombreuses fonctionnalités RAS et de gestion.
Spécifications techniques
| Memory | |
| Cache Memory | 8 GB |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Warranty | |
| Additional Warranty Information | The adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapter assumes the server's base warranty and any warranty upgrades. |
| Interfaces/Ports | |
| Total Number of SAS Ports | 16 |
| Number of SAS Ports (Internal) | 16 |
| SAS Connector Details | Two x8 SFF-8654 |
| Miscellaneous | |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | SAS Controller |
| Manufacturer Part Number | 4Y37A09730 |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | RAID 940-16i |
| Product Name | ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter |
| Brand Name | Lenovo |
| Technical Information | |
| Host Interface | PCI Express 4.0 x8 |
| Device Supported | Server |
| RAID Levels | 6 |
| 60 | |
| 50 | |
| 5 | |
| 10 | |
| 1 | |
| 0 | |
| JBOD | |
| Controller Type | 12Gb/s SAS |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP4 |
| VMware ESXi 6.7 U2 | |
| VMware ESXi 6.7 U3 | |
| VMware ESXi 7.0 U1 | |
| VMware ESXi 7.0 U2 | |
| VMware ESXi 7.0 U3 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| VMware ESXi 6.7 | |
| VMware ESXi 6.7 U1 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SuSE Linux Enterprise Server 15 | |
| SUSE Linux Enterprise Server 12 SP3 | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| Ubuntu 20.04 LTS | |
| Ubuntu 18.04 LTS | |
| SUSE Linux Enterprise Server 15 SP3 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| RAID Supported | Yes |
| Data Backup Type | Flash Backed Cache |
