À propos du produit

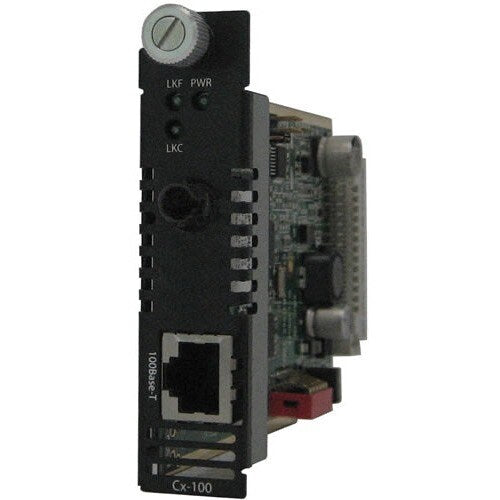

Installed in a high density Perle Media Converter Chassis, Perle's feature rich Fast Ethernet Media Converter Modules family transparently connects UTP copper to fiber. Our fast ethernet media converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.
Network Administrators can rest assured with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle's fast ethernet media converter modules the smart choice for IT professionals.
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 10/100Base-T technology get up to 100Mbps data transfer rate over optical fiber cable
- Takes minimal energy and effort to get installed internally
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
Spécifications techniques
| Miscellaneous | |
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 5.29 oz (150 g) |
| Form Factor | Internal |
| Network & Communication | |
| Network Technology | 10/100Base-T |
| 100Base-BX-U | |
| Ethernet Technology | Fast Ethernet |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05041810 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | C-100-M1ST2U |
| Product Name | Fast Ethernet Converter Module Unmanaged |
| Brand Name | Perle |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Management Port | No |
| Number of ST Ports | 1 |
| Total Number of Ports | 2 |
| Media & Performance | |
| Maximum Distance Supported | 2 km |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 85/125 µm |
| 50/125 µm | |
| 62.5/125 µm | |
| 100/140 µm | |
| Fiber Optic Cable Wavelength | 0.06 mil (0 mm) |
| 0.05 mil (0 mm) |
