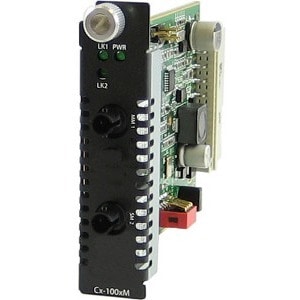

Installed in a high density Perle Media Converter Chassis, Perle's feature rich Managed Fast Ethernet Media Converter Modules transparently connect UTP copper to fiber. Our fast ethernet media converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.
Network Administrators can rest assured with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. Along with a Media Converter Management Module in the chassis, configuration and monitoring of the copper and fiber ports can be performed. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle's managed fast ethernet media converter modules the smart choice for IT professionals.
For those environments requiring a medium to large-scale deployment of media converters, a centralized platform that simplifies the configuration, administration, monitoring, and troubleshooting of this gear is recommended. PerleVIEW Device Management software is a multi-user, Windows server-based application that delivers this level of Enterprise-grade solution.
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 10/100Base-T technology get up to 100Mbps data transfer rate over optical fiber cable
- Takes minimal energy and effort to get installed internally
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
Spécifications techniques
| Miscellaneous | |
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 5.29 oz (150 g) |
| Form Factor | Internal |
| Network & Communication | |
| Network Technology | 100Base-BX-U |
| 10/100Base-T | |
| Ethernet Technology | Fast Ethernet |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05042810 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | CM-100-M1ST2U |
| Product Name | Fast Ethernet Converter Module Managed |
| Brand Name | Perle |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Management Port | No |
| Number of ST Ports | 1 |
| Total Number of Ports | 2 |
| Media & Performance | |
| Maximum Distance Supported | 2 km |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 100/140 µm |
| 50/125 µm | |
| 85/125 µm | |
| 62.5/125 µm | |
| Fiber Optic Cable Wavelength | 0.06 mil (0 mm) |
| 0.05 mil (0 mm) |
