À propos du produit

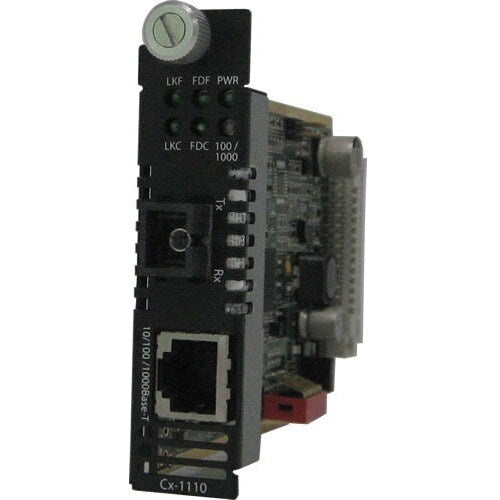

Installed in a high density Perle Media Converter Chassis, Perle's line of feature rich Managed 10/100/1000 Rate Converting Media Converters transparently connect copper to fiber. Our 10/100/1000 Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. Along with a Media Converter Management Module in the chassis, configuration and monitoring of the copper and fiber ports can be performed. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle's Managed 10/100/1000 Media Converter Modules the smart choice for IT professionals.
- Expand your network capabilities with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- Takes minimal energy and effort to get installed internally
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Spécifications techniques
| Physical Characteristics | |
| Weight (Approximate) | 5.29 oz (150 g) |
| Form Factor | Internal |
| Network & Communication | |
| Network Technology | 1000Base-BX |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Miscellaneous | |
| Compatibility | Perle Media Converter Chassis |
| Certifications & Standards |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Media & Performance | |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.05 mil (0 mm) |
| 0.06 mil (0 mm) | |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05042860 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | CM-1110-M1SC05D |
| Product Name | 10/100/1000 Media Converter Module Managed |
| Brand Name | Perle |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of SC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
