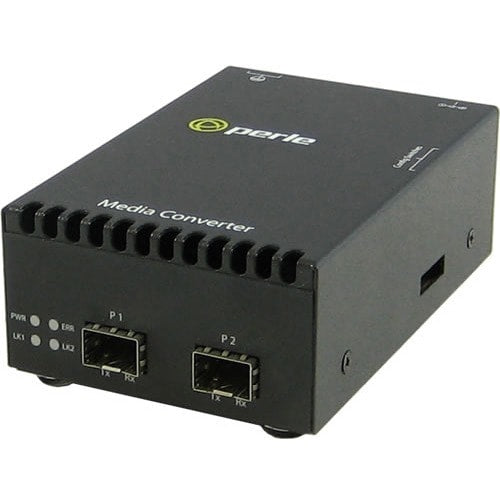

Perle S-10G Media Converters transparently connect 10 Gigabit Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with two pluggable transceiver ports that support fiber to fiber, copper to fiber or copper to copper media conversion. The S-10GR additionally supports 10/100/1000/2500/10000 rate conversion.
Fiber to Fiber and Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
The empty transceiver ports on the S-10G Media Converters allow for flexible network configurations to meet any requirement using a variety of 10G transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFP+ and XFPs. You can use these products to convert:
- SFP+ to SFP+
- XFP to XFP
- XFP to SFP+
- SFP to SFP ( 1000Base-x to 1000Base-x )
- SFP+ to CX4
- 10/100/1000/2500/10000 Ethernet
Perle 10 Gigabit Ethernet to Fiber Converters provide an economical path to extend the distance of an existing 10GbE link. Network Administrators can "see-everything" with Perle's advanced features such as Smart Link Pass-Through, Fiber Fault Alert, a built-in Link Test capability and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle S-10G Media Converters the smart choice for IT professionals.
- With 10GBase-SR technology get up to 10Gbps data transfer rate over optical fiber cable
- The Rail-mountable provides convenient installation
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
Spécifications techniques
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Power Description | |
| Power Source | AC Adapter |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2 |
| Miscellaneous | |
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) | |
| Network & Communication | |
| Network Technology | 10GBase-CX1 |
| 10GBase-ER | |
| 10GBase-LR | |
| 10GBase-ZR | |
| 10GBase-SR | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 12.70 oz (360 g) |
| Form Factor | Wall Mountable |
| Rail-mountable | |
| Height | 3.15" (80 mm) |
| Width | 4.72" (120 mm) |
| Depth | 1.65" (42 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05060624 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-10GR-STS |
| Product Name | S-10GR-STS Transceiver/Media Converter |
| Product Series | S-10G |
| Brand Name | Perle |
