À propos du produit

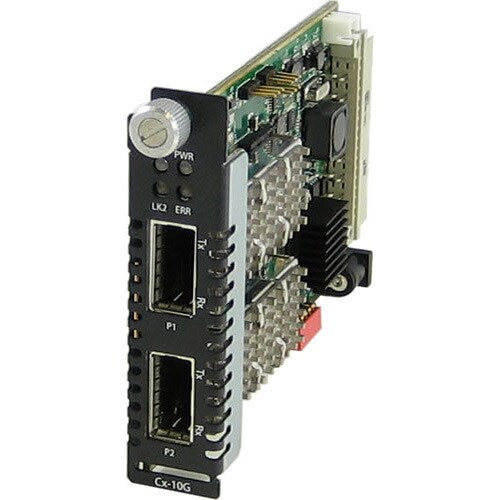

Installed in a high density MCR1900 Media Converter Chassis, Perle C-10G Media Converter Modules transparently connect 10 Gigabit Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with two pluggable transceiver ports that support fiber to fiber, copper to fiber or copper to copper media conversion.
Fiber to Fiber and Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
- With 10GBase-X technology get up to 10Gbps data transfer rate over supported network cable
- The Internal provides convenient installation
Spécifications techniques
| Physical Characteristics | |
| Form Factor | Internal |
| Power Description | |
| Input Voltage | 5 V DC |
| I/O Expansions | |
| Expansion Slot Type | XFP |
| Number of XFP Slots | 2 |
| Network & Communication | |
| Network Technology | 10GBase-X |
| Ethernet Technology | 10 Gigabit Ethernet |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05061530 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | C-10G-XTX |
| Product Name | C-10G-XTX Media Converter |
| Brand Name | Perle |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Network (RJ-45) | No |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| Miscellaneous | |
| Compatibility | Perle Systems MCR1900 Media Converter Chassis |
| Certifications & Standards | Emissions:
Immunity:
Electrical Safety:
IEEE Protocol:
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
