À propos du produit

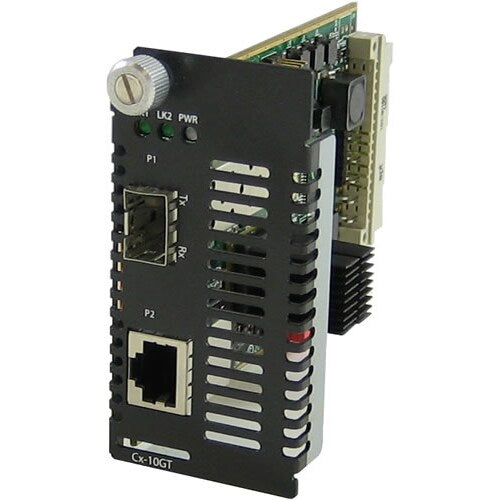

Installed in a high density MCR1900 Media Converter Chassis, Perle C-10GT Media Converter Modules transparently connect 10GBase-T Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with one RJ45 10GBase-T port and an empty slot for one SFP+ or XFP module.
Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
- Connect different types of media within a network with this single port
- With 10GBase-T technology get up to 10Gbps data transfer rate over twisted pair cable
- Takes minimal energy and effort to get installed internally
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Spécifications techniques
| Physical Characteristics | |
| Form Factor | Internal |
| I/O Expansions | |
| Expansion Slot Type | XFP |
| Number of XFP Slots | 1 |
| Media & Performance | |
| Maximum Distance Supported | 0.10 km |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Network Technology | 10GBase-T |
| Ethernet Technology | 10 Gigabit Ethernet |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05061560 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | C-10GT-XFPH |
| Product Name | 10 Gigabit Ethernet Media Converter Module |
| Brand Name | Perle |
| Miscellaneous | |
| Compatibility | Perle MCR1900 Media Converter Chassis |
| Certifications & Standards |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Restriction of Hazardous Substances (RoHS) | |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| Total Number of Ports | 1 |
