À propos du produit

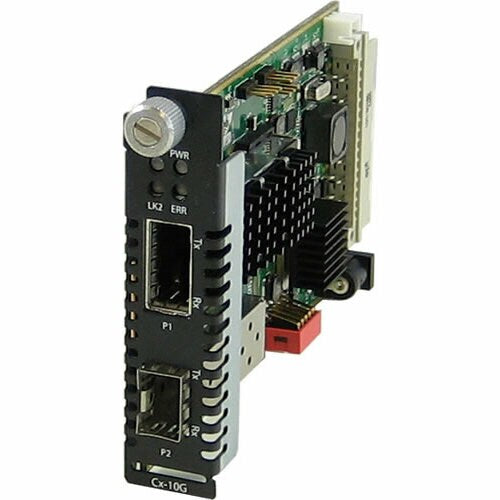

Installed in a high density MCR1900 Media Converter Chassis, Perle CM-10G Media Converter Modules transparently connect 10 Gigabit Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with two pluggable transceiver ports that support fiber to fiber, copper to fiber or copper to copper media conversion. These media converters can be used in an unmanaged environment or can be SNMP manageable to enable complete control and status viewing of your fiber links.
Fiber to Fiber and Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
- With 10GBase-X technology get up to 10Gbps data transfer rate over supported network cable
- The Internal provides convenient installation
Spécifications techniques
| Network & Communication | |
| Network Technology | 10GBase-X |
| Physical Characteristics | |
| Form Factor | Internal |
| I/O Expansions | |
| Expansion Slot Type | XFP |
| SFP+ | |
| Number of SFP+ Slots | 1 |
| Number of XFP Slots | 1 |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05062510 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | CM-10G-XTS |
| Product Name | CM-10G-XTS Media Converter |
| Brand Name | Perle |
| Miscellaneous | |
| Compatibility | Perle MCR1900 Media Converter Chassis |
| Certifications & Standards | IEEE Standards:
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Restriction of Hazardous Substances (RoHS) |
