À propos du produit

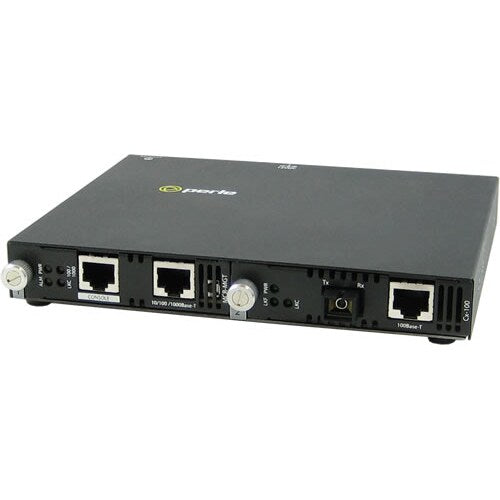

Perle's advanced line of Managed Fast Ethernet Media Converters, transparently connects UTP ethernet copper to multimode or single mode fiber. While providing an economical means of extending your existing copper based network connection, these media converters are SNMP manageable to enable complete control and status viewing of your fiber links.
Perle Fast Ethernet Managed Media Converters come standard with extensive cost and time saving features. In addition, a lifetime warranty and free worldwide technical support make Perle's Managed Fast Ethernet Converters the smart choice for IT professionals.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 100Base-FX technology get up to 100Mbps data transfer rate over twisted pair cable
- With Wall mounting feature, you can conveniently install the device while keeping the wires and cables organized
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Network & Communication | |
| Network Technology | 100Base-FX |
| 100Base-TX | |
| Ethernet Technology | Fast Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Management Port | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| Media & Performance | |
| Maximum Distance Supported | 20 km |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Optic Cable Wavelength | 0.06 mil (0 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05070464 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | SMI-100-S1SC20D |
| Product Name | SMI-100-S1SC20D - Fast Ethernet Standalone IP Managed Media Converter |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 1.59 lb (722 g) |
| Form Factor | Wall Mountable |
| Rack-mountable | |
| External | |
| Rail-mountable | |
| Height | 0.91" (23 mm) |
| Width | 6.89" (175 mm) |
| Depth | 5.71" (145 mm) |
