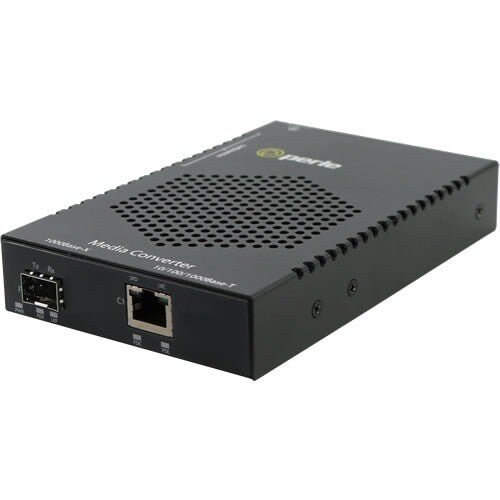

Systèmes Perle Perle S-1110HP

Perle S-1110HP-SFP Fiber Media Converters transparently connect copper to fiber while providing up to 100 Watts of IEEE 802.3bt compliant Hi-PoE PSE power to standards-based compliant devices such as pan-tilt-zoom (PTZ) security cameras with heaters, LED lighting in building management, and 802.11ax/ac wireless access points.

Perle Hi-PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle Hi-PoE media converters provide power to Powered Devices (PDs) that support the IEEE 802.3bt PoE standard (up to 100W of power) or pre-standard solutions including UPoE, 4PPoE, PoE++, UltraPoE, 4 Pair PoE, etc. As this standard is fully backwards compatible with the existing IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, all of those PD's are also supported. The S-1110HP-SFP Fiber Media Converter features single or dual 10/100/1000Base-T RJ45 ports to power one or two PD's per converter.

And, with one or two empty transceiver ports on the S-1110HP-SFP Fiber Media Converter, flexible network configurations requirements can be meet using a variety of transceivers supplied by Perle, Cisco, or other manufacturers of MSA compliant SFPs.

• extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over 100/1000Base-X fiber
• extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber
• protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber.

Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle S-1110HP-SFP PoE Media Converters the smart choice for IT professionals.

S-1110HP-SFP-XT PoE Media Converters are also available with support for -40C to +75C (-40F to +167F) extended operating temperature ranges

• 10/100/1000Base-T to 100/1000Base-X Fiber
• 1 or 2 empty slots for Cisco and other industry standard SFPs
• Supplies IEEE 802.3bt Hi-PoE PSE (up to 100W) power
• Compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ PoE devices
• Dual or Single 10/100/1000Base-T PoE ports
• Advanced features: PD Reset, Fiber redundancy, Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback
