À propos du produit

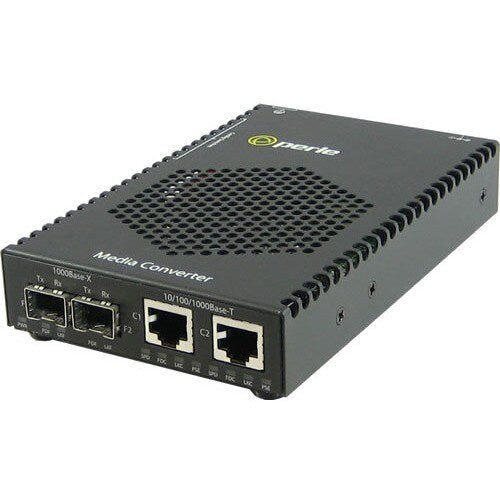

Perle's feature rich Gigabit rate converting PoE Media Converters transparently connect copper to f ber while providing Power over Ethernet ( PoE ) to standards-based PoE and PoE+ compliant devices such as IP cameras, VoIP phones and wireless access points. S-1110 PoE Media Converters are also available with support for Extended Temperature ranges.
- Expand your network capabilities with this 3 transceiver/media converter
- With 1000Base-BX technology get up to 1000Mbps data transfer rate over optical fiber cable
- The Rail-mountable provides convenient installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Spécifications techniques
| Network & Communication | |
| Network Technology | 1000Base-BX |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Media & Performance | |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.05 mil (0 mm) |
| 0.06 mil (0 mm) | |
| Physical Characteristics | |
| Weight (Approximate) | 15.87 oz (450 g) |
| Form Factor | Rail-mountable |
| Rack-mountable | |
| Height | 1" (25.40 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 5.90" (149.86 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05083264 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-1110DPP-M1SC05U |
| Product Name | 10/100/1000 PoE Media Converter |
| Brand Name | Perle |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of SC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 3 |
