À propos du produit

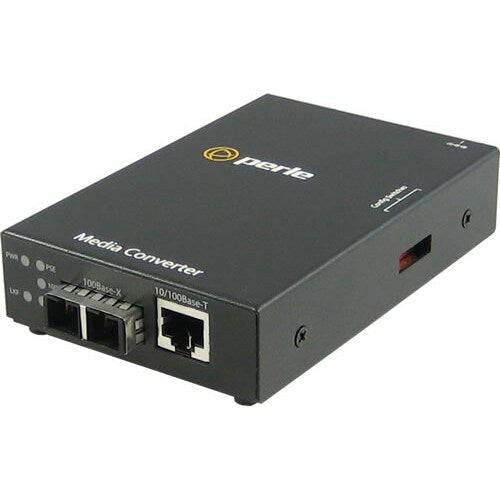

Perle's feature rich Fast Ethernet rate converting PoE Media Converters transparently connect copper to fiber while providing Power over Ethernet ( PoE ) to standards-based PoE and PoE+ compliant devices such as IP cameras, VoIP phones and wireless access points.
Perle PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle PoE media converters also provide power to Powered Devices (PDs). Perle has PoE media converter models that support the IEEE 802.3af PoE standard (15.4W of power) or the IEEE 802.3at PoE+ standard (30W of power).
Perle 10/100 PoE Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network with fiber cabling. At the same time they function as PoE injectors to power devices like IP phones, video conferencing equipment, IP cameras and Wi-Fi devices over copper UTP cabling.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 100Base-EX technology get up to 100Mbps data transfer rate over optical fiber cable
- The Rail-mountable provides convenient installation
Spécifications techniques
| Media & Performance | |
| Maximum Distance Supported | 40 km |
| Network & Communication | |
| Network Technology | 10/100Base-TX |
| 100Base-EX | |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Interfaces/Ports | |
| Number of PoE+ (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05085054 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-110PP-S2SC40 |
| Product Name | S-110PP-S2SC40 Media Converter |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 300 g |
| Form Factor | Wall Mountable |
| Rail-mountable | |
| Rack-mountable | |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
