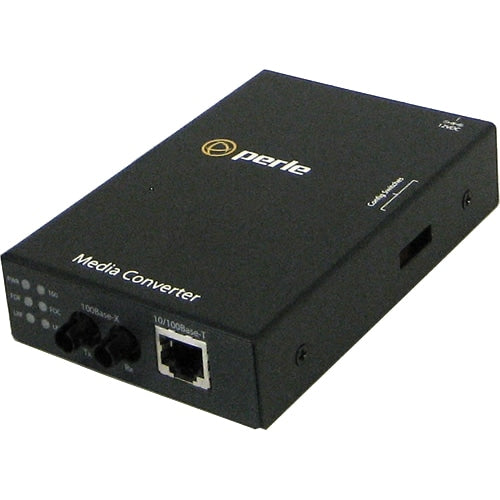

The S-110-XT Industrial Temperature Media Converters address the need for transparently connecting 10/100 Ethernet equipment that operate in extreme temperatures to fiber optic cable. The S-110-XT Media Converters will operate in industrial grade temperatures of -40F to +167F (-40C to +75C). Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. Boasting this extended temperature feature along with a rugged steel casing, the S-110-XT Media Converter provides an economical path to extend the distance between two industrial devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 100Base-FX technology get up to 100Mbps data transfer rate over twisted pair cable
- Tuck the device out of the way with its Wall Mounting feature
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
Spécifications techniques
| Power Description | |
| Input Voltage | 30 V DC |
| Network & Communication | |
| Network Technology | 10/100Base-TX |
| 100Base-FX | |
| Media & Performance | |
| Maximum Distance Supported | 2 km |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm |
| Miscellaneous | |
| Certifications & Standards |
Emissions:
Electrical Safety:
Laser Safety:
Others:
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05090010 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-110-M2ST2-XT |
| Product Name | S-110-M2ST2-XT Media Converter |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 299.4 g |
| Form Factor | Desktop |
| Wall Mountable | |
| Rack-mountable | |
| Rail-mountable | |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of ST Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
