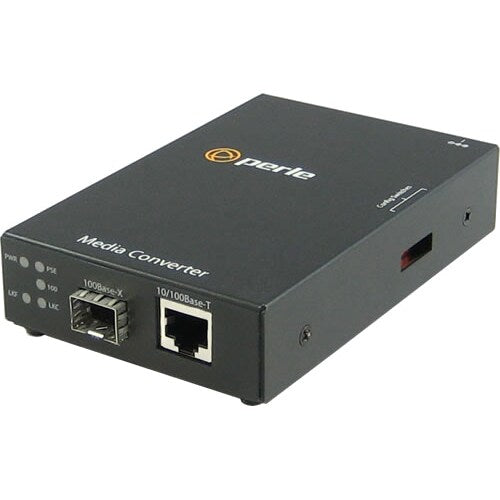

The S-110P-XT Industrial Temperature PoE Media Converters address the need for transparently connecting 10/100 Ethernet equipment that operate in extreme temperatures to fiber while providing Power over Ethernet ( PoE ) to standards-based PoE and PoE+ compliant devices.
The S-110P-XT PoE Media Converters will operate in industrial grade temperatures of -40F to +167F (-40C to +75C). Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. Boasting this extended temperature feature along with a rugged steel casing, the S-110P-XT Media Converter provides an economical path to extend the distance between two industrial devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.
- Connect different types of media within a network with this single port
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- The Desktop provides convenient installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Spécifications techniques
| Network & Communication | |
| Network Technology | 10/100Base-TX |
| Power Description | |
| Input Voltage | 57 V DC |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Media & Performance | |
| Maximum Distance Supported | 0.10 km |
| Media Type Supported | Twisted Pair |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05090360 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-110PP-SFP-XT |
| Product Name | S-110PP-SFP-XT Media Converter |
| Brand Name | Perle |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
Emissions:
Electrical Safety:
Laser Safety:
Others:
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of PoE+ (RJ-45) Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 317.5 g |
| Form Factor | Rack-mountable |
| Rail-mountable | |
| Wall Mountable | |
| Desktop | |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
