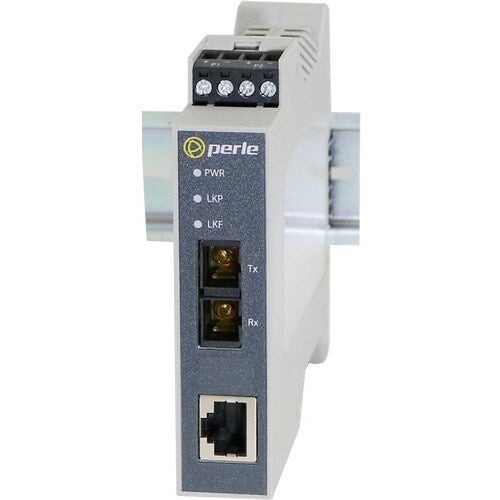

Perle SR-1000 DIN Rail Media Converters transparently connect UTP copper to fiber. These Gigabit Media Converters provide an economical path to:
- enable Gigabit speeds across a multimode fiber link up to 2km in length
- extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber
- extend the life of non-fiber based equipment by enabling data transmission from 1000Base-T devices over gigabit fiber
- extend the distance between two copper-based devices or networks
- protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants.
Some SR-1000 Media Converters are also available with an SFP slot or support for -40C to +75C (-40F to +167F) extended operating temperatures.
Network Administrators can rest assured with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make SR-1000 Gigabit Media Converters the smart choice for IT professionals.
- Expand your network capacity and fulfill requirement with this 3 transceiver/media converter
- With 1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
- The Rail-mountable provides convenient installation
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
Spécifications techniques
| Power Description | |
| Power Source | AC Adapter |
| Network & Communication | |
| Network Technology | 1000Base-SX |
| 1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 2 |
| Total Number of Ports | 3 |
| SC Port Type | Duplex |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Weight (Approximate) | 4.23 oz (120 g) |
| Form Factor | Rail-mountable |
| Height | 0.89" (22.50 mm) |
| Width | 4.49" (114 mm) |
| Depth | 3.94" (100 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05091300 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | SR-1000-SC05 |
| Product Name | SR-1000-SC05 Transceiver/Media Converter |
| Product Series | SR-1000 |
| Brand Name | Perle |
| Media & Performance | |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 100/140 µm |
| 50/125 µm | |
| 62.5/125 µm | |
| 85/125 µm | |
| Fiber Optic Cable Wavelength | 0.06 mil (0 mm) |
