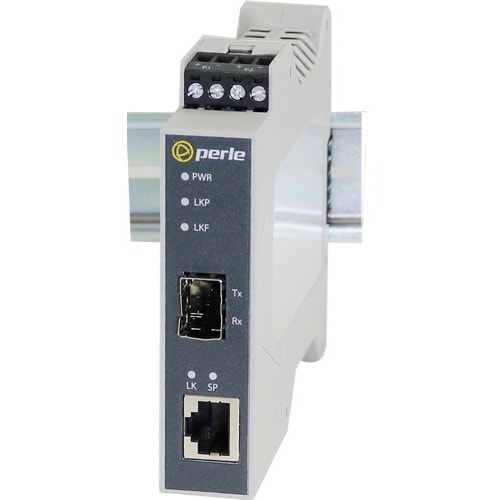

The Perle SR-1110-SFP DIN Rail Media Converter transparently connects UTP copper to fiber. A pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs. This rate converting Media Converter provides an economical path to:
- extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over gigabit fiber
- extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber
- extend the distance between two copper-based devices or networks
- protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants.
An SR-1110-SFP Media Converter is also available with support for -40C to +75C (-40F to +167F) extended operating temperatures.
Network Administrators can rest assured with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make the SR-1110-SFP Rate Converting Media Converter the smart choice for IT professionals.
- 10/100/1000Base-T to 100Base-X or 1000Base-X
- Connect 10/100 devices to Fast Ethernet or Gigabit backbone
- Link copper to multimode or single mode fiber
- Empty slot for Cisco and other industry standard SFPs
- Advanced Features: Link Pass-Through, Far-End Fault, Auto-MDIX
- Triple Power Input: Dual Terminal block power connector & T-Bus
Spécifications techniques
| Power Description | |
| Power Source | AC Adapter |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| Media & Performance | |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| 1000Base-X | |
| 100Base-X | |
| Ethernet Technology | Fast Ethernet |
| Gigabit Ethernet | |
| Physical Characteristics | |
| Weight (Approximate) | 4.23 oz (120 g) |
| Form Factor | Rail-mountable |
| Height | 0.89" (22.50 mm) |
| Width | 4.49" (114 mm) |
| Depth | 3.94" (100 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05091960 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | SR-1110-SFP |
| Product Name | SR-1110-SFP Transceiver/Media Converter |
| Brand Name | Perle |
