À propos du produit

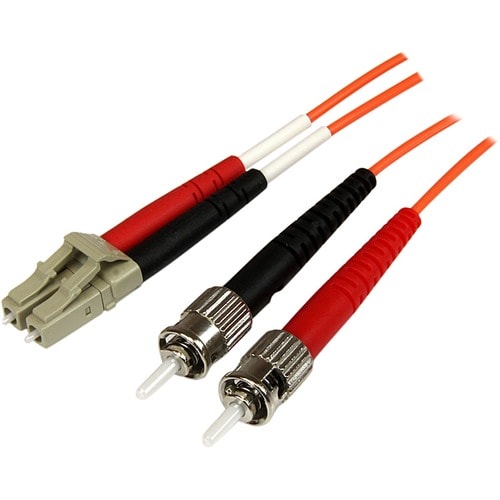

LC to ST Plenum Multimode Fiber Patch Cable provides a high-performance link between fiber network devices for applications requiring plenum-rated cables. It features 50/125 micron fiber for high-speed, high-bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks with support for duplex multimode applications. Maximum data-transfer rate is 10Gbps. The OFNP Plenum rating is ideal for installation in air plenums, ducts, walls, conduit and ceilings where CMP fire rating is required. Each Duplex 50/125 (OM2) Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.
More from the Manufacturer

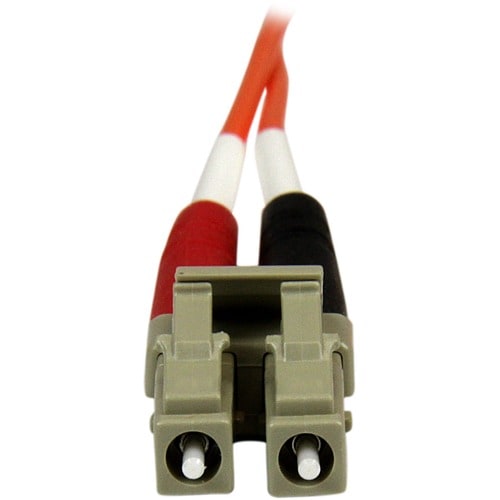

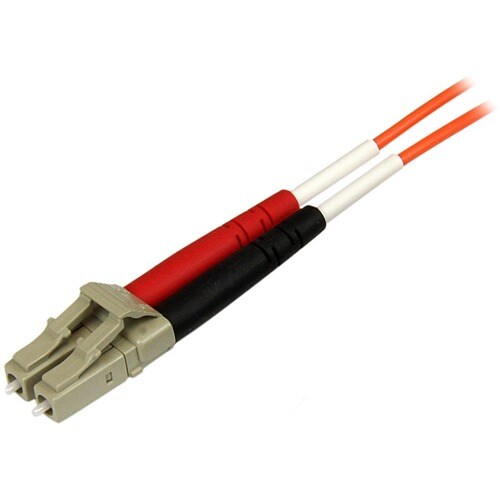

- 1x LC MM male connector

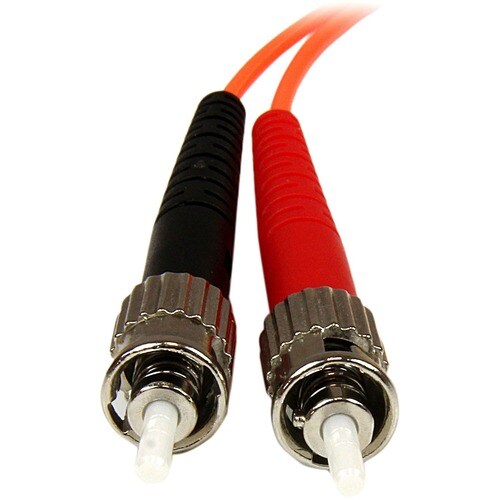

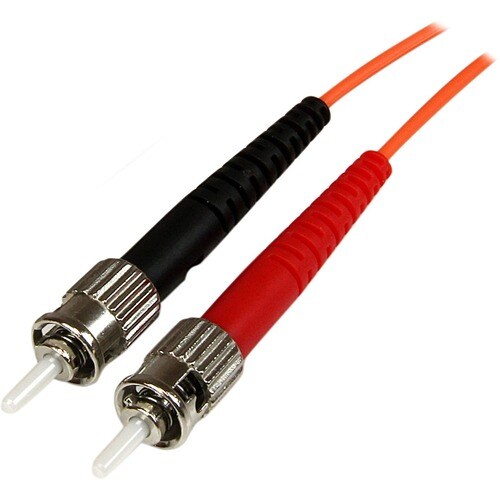

- 1x ST MM male connector
- OFNP Plenum Fire Rating
- OM2 (50/125) 500MHz multimode fiber
- Attenuation loss meets or exceeds industry standards
- Molded connectors
Spécifications techniques
| Miscellaneous | |
| Country of Origin | China |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.28 oz (36.29 g) |
| Weight (Approximate) | 1 oz (28.35 g) |
| Shipping Height | 0.43" (10.92 mm) |
| Shipping Width | 7.87" (199.90 mm) |
| Product Color | Orange |
| Color Family | Orange |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | 50FIBPLCST1 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 1m OFNP Plenum Multimode 50/125 Duplex Fiber Patch Cable LC - ST |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 3.3 ft (1.01 m) |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Network Device |
| Jacket Type | CMP |
| OFNP | |
| Plenum | |
| Features | Molded |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | ST Network - Male |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x ST Network - Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
