À propos du produit

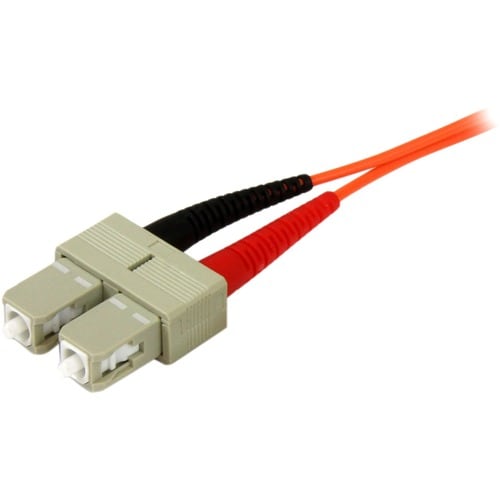

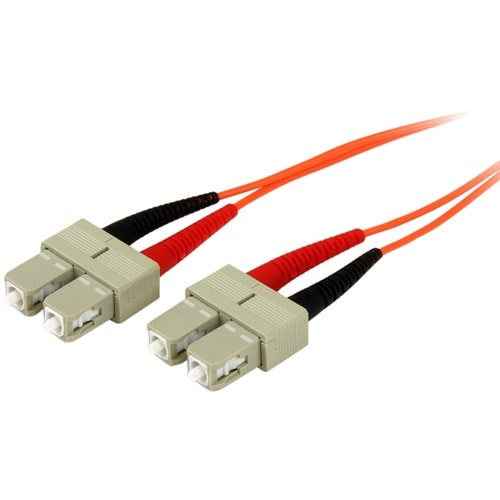

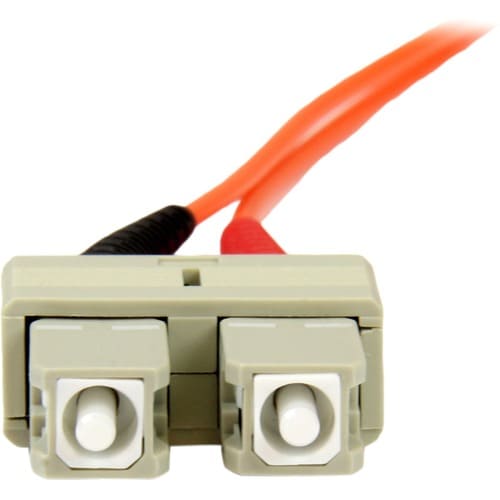

Plenum Multimode 50/125 Duplex Fiber Patch Cable provides a high-performance link between fiber network devices for applications requiring plenum-rated cables. It features 50/125 micron fiber for high-speed, high-bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks with support for duplex multimode applications. The OFNP Plenum rating is ideal for installation in air plenums, ducts, walls, conduit and ceilings where CMP fire rating is required. Cable with SC connectors is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability. Maximum data-transfer rate is 10Gbps.
More from the Manufacturer
- 2x SC MM male connectors
- OFNP Plenum Fire Rating
- OM2 (50/125) 500MHz multimode fiber
- Attenuation loss meets or exceeds industry standards
- Molded connectors
Spécifications techniques
| Miscellaneous | |
| Country of Origin | China |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.92 oz (54.43 g) |
| Weight (Approximate) | 1.60 oz (45.36 g) |
| Shipping Height | 0.98" (24.89 mm) |
| Shipping Width | 7.87" (199.90 mm) |
| Product Color | Orange |
| Color Family | Orange |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | 50FIBPSCSC2 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 2m OFNP Plenum Multimode 50/125 Duplex Fiber Patch Cable SC - SC |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 6.6 ft (2.01 m) |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Network Device |
| Jacket Type | CMP |
| OFNP | |
| Plenum | |
| Features | Molded |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | SC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 2 x SC Network - Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
