40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This singlemode 9/125 OS2 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.
100% Tested for Low Insertion Loss and Back Reflection

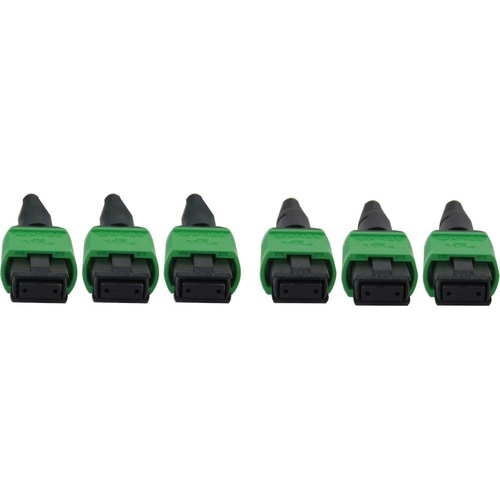

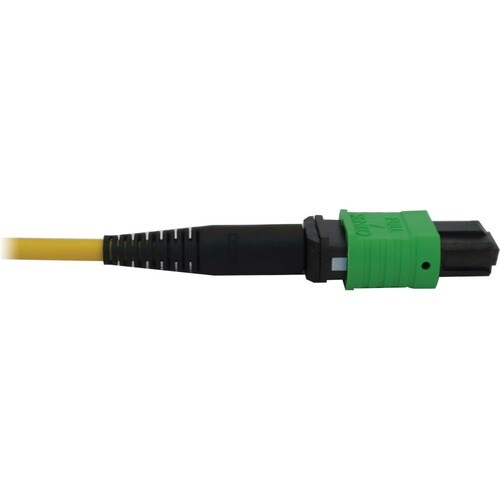

The factory-terminated 8-fiber MTP/MPO APC connectors help minimize back reflection with low insertion loss. The connector's slim boot and green housing allow easy one-handed installation and removal of the cable.
Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime

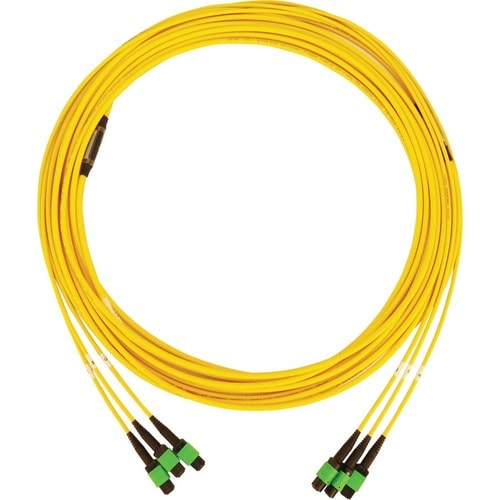

The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
- Features Bendable
- Features Fiber Optic cable type
- For exceptional quality, upright compatibility and reliability use this Network Cable
Spécifications techniques
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 13.39 oz (379.66 g) |
| Shipping Height | 0.50" (12.70 mm) |
| Shipping Width | 10.50" (266.70 mm) |
| Jacket Color | Yellow |
| Connector Color | Black |
| Green | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N392B10M3X8AP |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | N392B-10M-3X8AP |
| Product Name | N392B-10M-3X8AP Fiber Optic Trunk Network Cable |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 32.8 ft (10 m) |
| Data Transfer Rate | 400 Gbit/s |
| Device Supported | Network Device |
| Patch Panel | |
| Switch | |
| Jacket Type | LSZH |
| Features | Push-Pull Tab |
| Stranded | |
| Bendable | |
| Angled Physical Contact (APC) | |
| Cable Characteristic | Trunk Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | MTP/MPO Network - Female |
| Fiber Optic Mode | Single-mode |
| Connector on First End Details | 3 x MTP/MPO Network - Female |
| Connector on Second End Details | 3 x MTP/MPO Network - Female |
| Boot Type | Slim |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
