À propos du produit

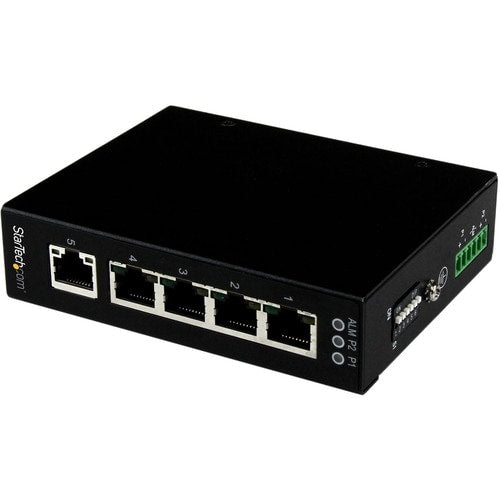

The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.
Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.

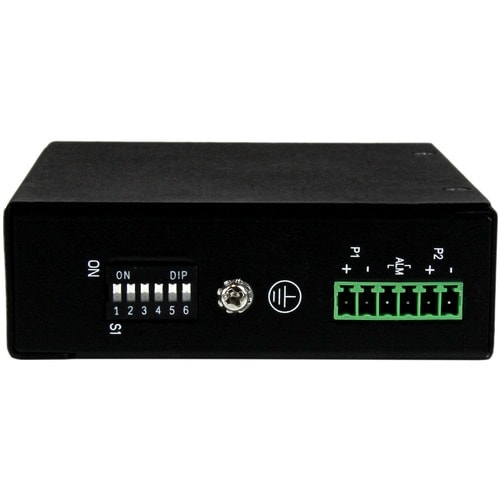

Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer

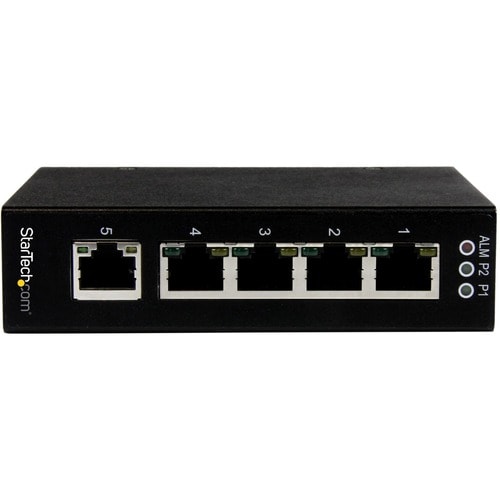

- 5 10/100/1000 Mbps unmanaged RJ45 Ethernet ports
- IP30-rated DIN rail and wall-mountable metal enclosure
- Wide-range redundant power via two 12-58V DC terminal block inputs, with alarm relay
- Overcurrent and reverse polarity protection
- Extended operating temperature range (-40?C to 75?C)
- Speed / duplex auto-negotiation and auto-MDIX detection on each port
- Up to 9K jumbo frame support
- IEEE 802.3az Energy-Efficient Ethernet
- Supports IEEE 802.3x flow control and back-pressure
Spécifications techniques
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 62 W |
| PoE (RJ-45) Port | No |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3u |
| IEEE 802.3x | |
| IEEE 802.3af | |
| IEEE 802.3ab | |
| IEEE 802.3 | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IES51000 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 11.60 oz (328.85 g) |
| Form Factor | Rail-mountable |
| Wall Mountable | |
| Height | 1.10" (27.94 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 4.40" (111.76 mm) |
| Product Material | Steel |
| Interfaces/Ports | |
| Token Ring Port | No |
| LRE Port | No |
| USB | No |
| Number of Network (RJ-45) Ports | 5 |
| Network (RJ-45) | Yes |
| Modular | No |
| Management Port | No |
| Uplink Port | No |
| Stack Port | No |
| Bypass | No |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
