À propos du produit

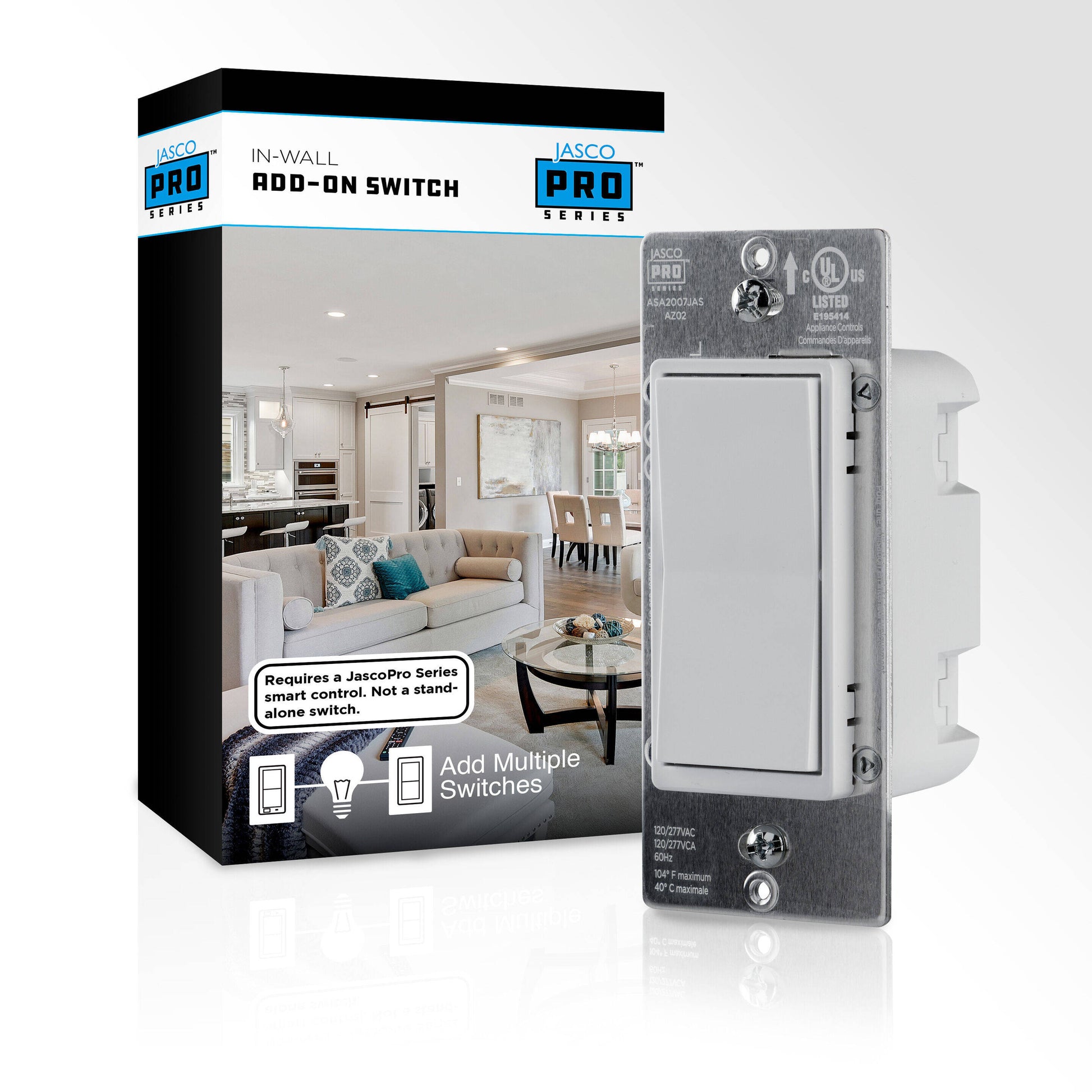

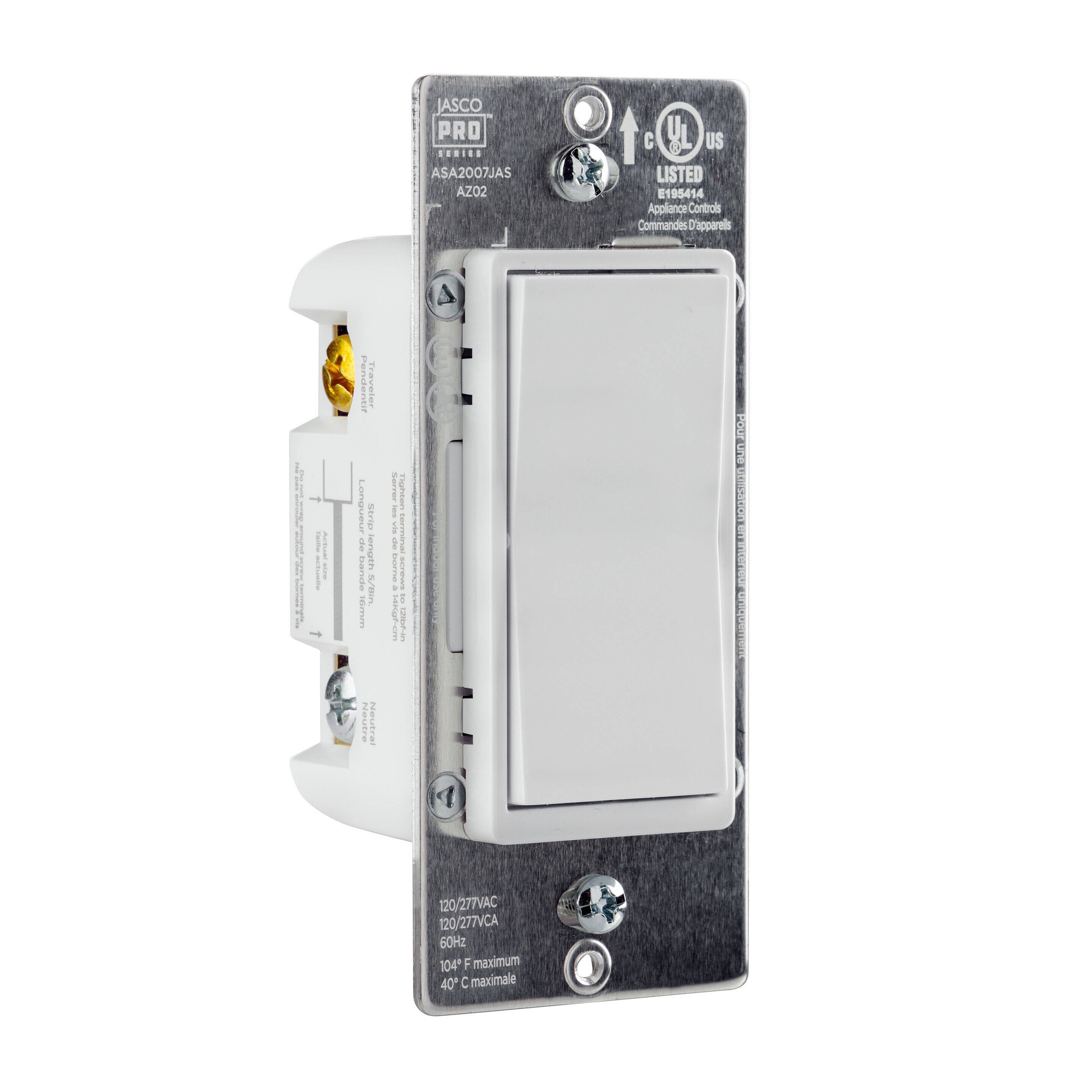

The JascoPro In-Wall Add-on Rocker Switch is an easy-to-wire, low-profile switch that increases the functionality of multi-switch smart home systems. Designed to work with JascoPro Series Wi-Fi, Z-Wave and Zigbee controllers to control switches, dimmers and fan controllers while mirroring connected devices for true multi-way switching and dimming.
QuickFit and SimpleWire technologies ensure smooth installation, auto-detection for line/load terminals simplifies wiring and makes daisy-chaining other switches much easier than traditional switches; and the reduced, slimmer switch body and lack of break-off tabs ensures switches will fit into almost any gang box, even crowded boxes with ‘behind-the-switch’ modules. Works in single-pole or multi-way switch configurations.
PLEASE NOTE: not a standalone switch, requires additional connected Wi-Fi, Zigbee or Z-Wave switches for smart control of up to 5 linked locations with a max of 4 add-on switches. Rated for universal 120/277VAC use. Package includes both white and light almond paddle colour options. Wallplate not included.
JascoPro 59378 Specs:
- Power: 120/277VAC, 60Hz
- Operating Temperature: 32-104° F (0-40° C)
- Warranty: 5-year limited manufacturer’s warranty
- Indoor use only
- Neutral wire required
- For use in 3-, 4-, 5- or 6-way configurations with JascoPro Series Wi-Fi, Z-Wave or Zigbee in-wall devices
- Connect up to four add-on switches to primary switch
- Maximum traveler wire distance: 300ft. interconnected between four add-on switches
- No more than 75ft. between each switch
- Maximum traveler wire distance between primary and one add-on switch: 200ft.
- Requires JascoPro Series smart control – not a stand-alone switch
- Uses standard rocker wallplate (sold separately), package includes interchangeable white and light almond rocker switch faceplates
Spécifications techniques
The JascoPro In-Wall Add-on Rocker Switch is an easy-to-wire, low-profile switch that increases the functionality of multi-switch smart home systems. Designed to work with JascoPro Series Wi-Fi, Z-Wave and Zigbee controllers to control switches, dimmers and fan controllers while mirroring connected devices for true multi-way switching and dimming.
QuickFit and SimpleWire technologies ensure smooth installation, auto-detection for line/load terminals simplifies wiring and makes daisy-chaining other switches much easier than traditional switches; and the reduced, slimmer switch body and lack of break-off tabs ensures switches will fit into almost any gang box, even crowded boxes with ‘behind-the-switch’ modules. Works in single-pole or multi-way switch configurations.
PLEASE NOTE: not a standalone switch, requires additional connected Wi-Fi, Zigbee or Z-Wave switches for smart control of up to 5 linked locations with a max of 4 add-on switches. Rated for universal 120/277VAC use. Package includes both white and light almond paddle colour options. Wallplate not included.
JascoPro 59378 Specs:
- Power: 120/277VAC, 60Hz
- Operating Temperature: 32-104° F (0-40° C)
- Warranty: 5-year limited manufacturer’s warranty
- Indoor use only
- Neutral wire required
- For use in 3-, 4-, 5- or 6-way configurations with JascoPro Series Wi-Fi, Z-Wave or Zigbee in-wall devices
- Connect up to four add-on switches to primary switch
- Maximum traveler wire distance: 300ft. interconnected between four add-on switches
- No more than 75ft. between each switch
- Maximum traveler wire distance between primary and one add-on switch: 200ft.
- Requires JascoPro Series smart control – not a stand-alone switch
- Uses standard rocker wallplate (sold separately), package includes interchangeable white and light almond rocker switch faceplates
