Power equipment UPS

Expected delivery 3 to 7 business days (exceptions applied)

Eaton

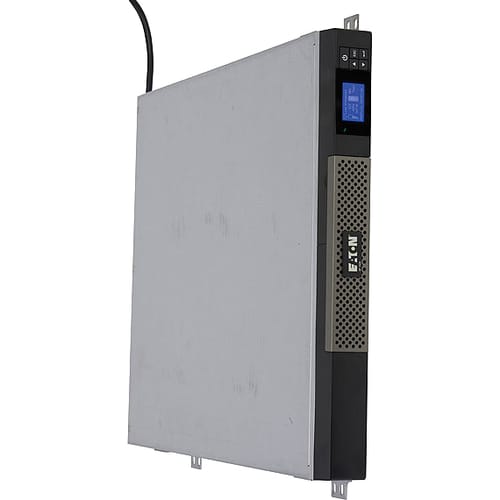

Onduleur Eaton 5P Rackmount - Montage en rack 1U - Autonomie en veille 3 minutes - 110 V

Onduleur Eaton 5P Rackmount - Montage en rack 1U - Autonomie en veille 3 minutes - 110 V

Prix habituel $607.55 CAD
Prix habituel $729.06 CAD Prix promotionnel $607.55 CAD
-16% OFF Épuisé
Frais d'expédition calculés à l'étape de paiement.
Onduleur Eaton 5P pour montage en rack - Montage en rack 1U - Autonomie de 3 minutes - Entrée 110 V CA - Sorties 132 V CA, 120 V CA, 132 V CA, 125 V CA - USB - 5 prises NEMA 5-15R

VPN : 5P550R SKU : RSC414589 UPC : 743172043030

  • Maintient l'équipement en fonctionnement pendant les pannes pour permettre la sauvegarde des fichiers et l'arrêt en toute sécurité
  • Fournit 20 % de puissance en plus par rapport aux systèmes UPS traditionnels pour protéger les appareils
  • La technologie exclusive ABM avec charge en 3 étapes augmente la durée de vie de la batterie interne de 50 %

Bloc de texte

Remise sur volume disponible - Demandez un devis.

Afficher tous les détails

Recently Viewed

Onduleur Eaton 5P Rackmount - Montage en rack 1U - Autonomie en veille 3 minutes - 110 V

Résumé des informations sur le produit

Onduleur Eaton 5P Rackmount - Montage en rack 1U - Autonomie en veille 3 minutes - 110 V

À propos du produit

550VA/420W/120V Battery Backup for Network Closets and Small Data Centers

This 5P rack-mount line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P550R protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.

Reliable Battery Backup Keeps You Operational Through Power Outages

valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.

Optional Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

NEMA 5-15R Outlets Protect Your Connected Components

Five managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Three outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

LCD Interface Keeps You Informed at a Glance

The five-button graphical LCD provides useful information about the UPS itself, load status, events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity.

  • Keeps equipment running during outages to allow time for file saves and safe shutdown
  • Provides 20% more wattage compared to traditional UPS systems to protect devices
  • Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
  • 5-button graphical LCD offers critical UPS data and load status at a glance
  • Optional NETWORK-M2 Gigabit network card enables full remote access and control

Spécifications techniques

Interfaces/Ports
USBYes
Network (RJ-45)Yes
Total Number of Expansion Slots1
Technical Information
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail5 x NEMA 5-15R
Battery Information
Battery ChemistryLead Acid
Hot SwappableYes
Backup/Run Time (Half Load)8 Minute
Backup/Run Time (Full Load)3 Minute
Battery CharacteristicsMaintenance-free, Sealed
Physical Characteristics
Weight (Approximate)19.70 lb (8935.77 g)
Form FactorRack-mountable
Rack Height1U
Height1.70" (43.18 mm)
Width17.20" (436.88 mm)
Depth14.30" (363.22 mm)
Power Description
Input Voltage110 V AC
Output Voltage132 V AC
125 V AC
120 V AC
Load Capacity (VA)550 VA
Load Capacity (Watt)420 W
General Information
Product TypeLine-interactive UPS
Manufacturer Part Number5P550R
Manufacturer Website Addresshttp://www.eaton.com/EatonCom/Markets/NorthAmerica
ManufacturerEaton Corporation
Product Model5P
Product Name5P Rackmount UPS
Brand NameEaton
Miscellaneous
Package Contents
  • 5P Rackmount UPS
  • User Manual CD
  • Intelligent Power Software Suite CD
  • Quick Start Guide
  • USB Cable
  • RS-232 Serial Cable
  • Mounting Ears
Software IncludedIntelligent Power Software Suite
Certifications & Standards
  • UL 1778
  • UL497A
  • cULus
  • CE
  • IEC 62040-2 C1-C2
  • EN 55024
  • CISPR22 Class B
  • FCC part 15 Class B
Country of OriginPhilippines
Environmentally FriendlyYes
Energy StarYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
