Onduleur Eaton 5PX G2 - Rack/Tour 2U - Entrée 120 V CA - Onde sinusoïdale pure - S
Onduleur Eaton 5PX G2 - Rack/Tour 2U - Entrée 120 V CA - Onde sinusoïdale pure - S
- Protège les équipements contre les pannes de courant, les baisses de tension, les surtensions transitoires et le bruit de ligne
- Maintient l'équipement en fonctionnement pendant les pannes pour permettre la sauvegarde des fichiers et l'arrêt en toute sécurité
- Le facteur de puissance unitaire garantit la puissance maximale possible à chaque puissance nominale
Bloc de texte
Impossible de charger la disponibilité du service de retrait
Remise sur volume disponible - Demandez un devis.
Afficher tous les détails





Recently Viewed
Onduleur Eaton 5PX G2 - Rack/Tour 2U - Entrée 120 V CA - Onde sinusoïdale pure - S
Résumé des informations sur le produit

À propos du produit
1.95kVA/1.95kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

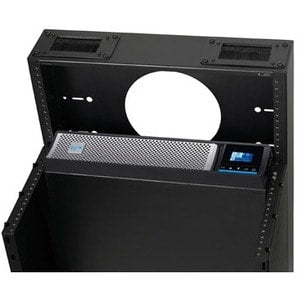

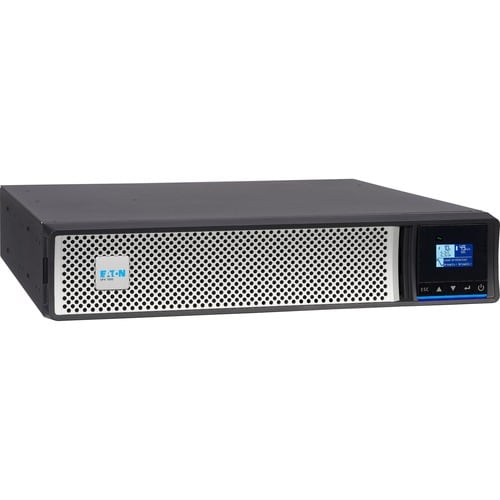

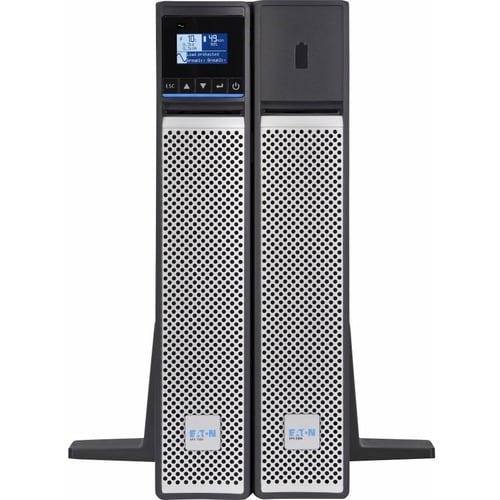

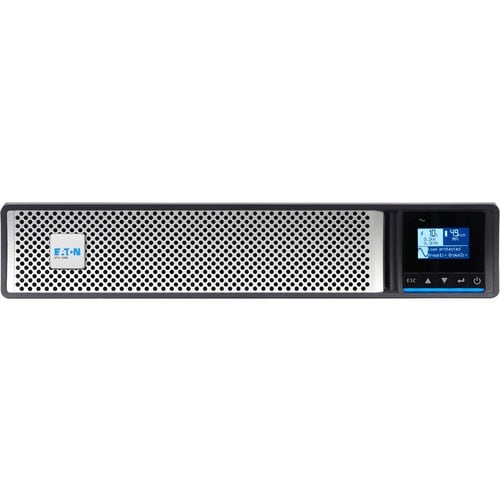

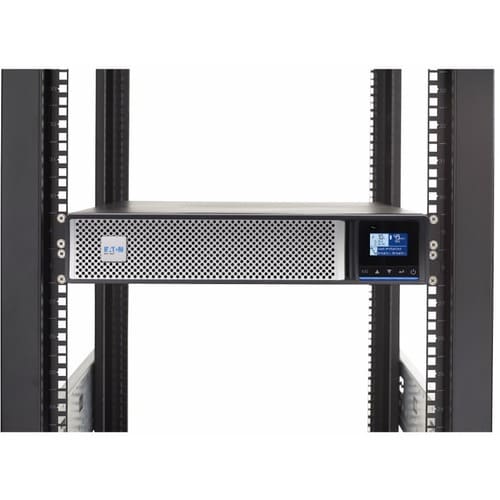

This 5PX G2 rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The 5PX2000RTG2 is ideal power management for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four external battery modules (5PXEBM72RTG2, sold separately) for hours of extended runtime.
Optional Gigabit Network Interface Offers 24/7 Remote Access
The Network-M3 network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the Network-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.
NEMA Outlets Protect Your Connected Components

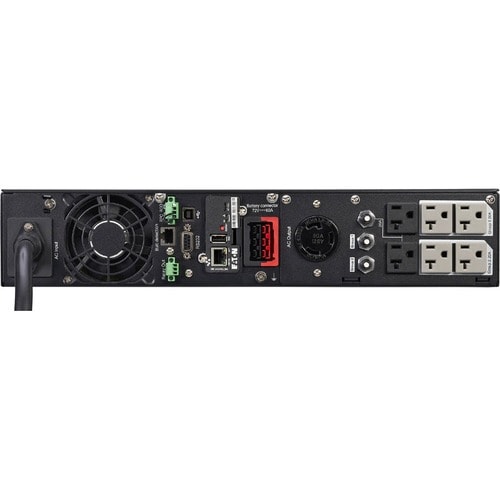

One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
- Protects equipment against blackouts, brownouts, transient surges and line noise
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Unity power factor ensures maximum power possible at each power rating
- ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment
- Optional external battery modules allow extended runtime to keep equipment running
Spécifications techniques
Controls/Indicators | |
Status Indicators | LCD Display |
Management | |
Network Management | Network-M3 Card |
Interfaces/Ports | |
Serial Port | Yes |
USB (HID Compliant) Port | Yes |
Battery Information | |
Battery Chemistry | Lead Acid |
Hot Swappable | Yes |
Battery Characteristics | Sealed |
Replaceable Battery | Yes |
Power Description | |
Input Voltage | 120 V AC |
Waveform Type | Pure Sine Wave |
Input Frequency | 60 Hz |
Load Capacity (VA) | 1.95 kVA |
Load Capacity (Watt) | 1.95 kW |
Miscellaneous | |
Package Contents |
|
Country of Origin | Philippines |
Environmentally Friendly | Yes |
Energy Star | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Restriction of Hazardous Substances (RoHS) | |
General Information | |
Product Type | Line-interactive UPS |
Manufacturer Part Number | 5PX2000RTG2 |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Model | 5PX2000RTG2 |
Product Name | 5PX G2 UPS |
Product Series | 5PX G2 |
Brand Name | Eaton |
Physical Characteristics | |
Weight (Approximate) | 74.50 lb (33792.63 g) |
Form Factor | Rack/Tower |
Rack Height | 2U |
Height | 3.40" (86.36 mm) |
Width | 17.20" (436.88 mm) |
Depth | 23.70" (601.98 mm) |
Product Color | Black |
Color Family | Black |
Technical Information | |
Application/Usage | Server |
Network Device | |
Retail and Wholesale | |
PoE System | |
Telecommunication | |
VoIP Phone | |
IT Equipment | |
Healthcare | |
Automation Industry | |
Business | |
Data Storage | |
Distribution Center | |
Education | |
Financial | |
Plug/Connector Type | NEMA L5-30P |
Receptacle Type | NEMA L5-30R |
NEMA 5-20R | |
Receptacle Detail | 6 x NEMA 5-20R |
1 x NEMA L5-20R |
