À propos du produit

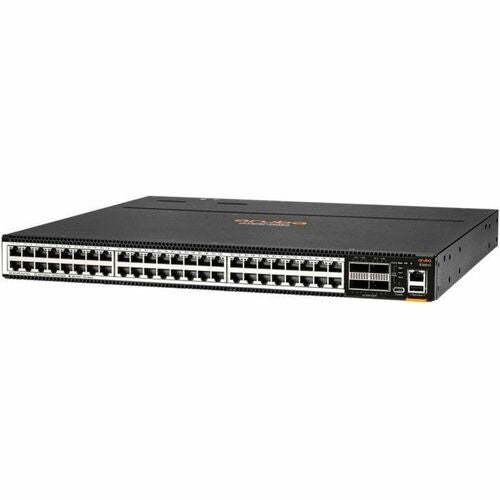

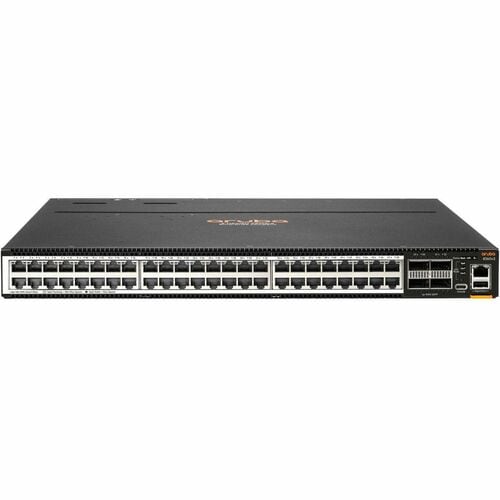

Aruba CX 8360 Switch Series
The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.
The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.
In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 48.0 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48.0 ports
- Cascade to other network devices through the uplink port to expand your local area network
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | QSFP28 |
| Total Number of Expansion Slots | 4.0 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 48.0 |
| Port/Expansion Slot Details | 4 x 100 Gigabit Ethernet Expansion Slot |
| 48 x 10 Gigabit Ethernet Network | |
| Media & Performance | |
| Network Technology | 100GBase-X |
| 10GBase-T | |
| Ethernet Technology | 100 Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Power Description | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 500 W |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL707CABA |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 8360v2- 48XT4C |
| Product Name | 8360v2- 48XT4C Ethernet Switch |
| Product Series | CX 8360 |
| Brand Name | HPE |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3z |
| IEEE 802.1ae | |
| IEEE 802.1AX | |
| IEEE 802.1D | |
| IEEE 802.1Q | |
| IEEE 802.1Qbb | |
| IEEE 802.1s | |
| IEEE 802.3by | |
| IEEE 802.3ba | |
| IEEE 802.3an | |
| IEEE 802.3ae | |
| IEEE 802.1ab | |
| IEEE 802.3cc | |
| IEEE 802.1AEbn | |
| IEEE 802.1AEbw | |
| IEEE 802.1ak | |
| IEEE 802.3ad | |
| IEEE 802.1w | |
| IEEE 802.1v | |
| IEEE 802.1t |
