À propos du produit

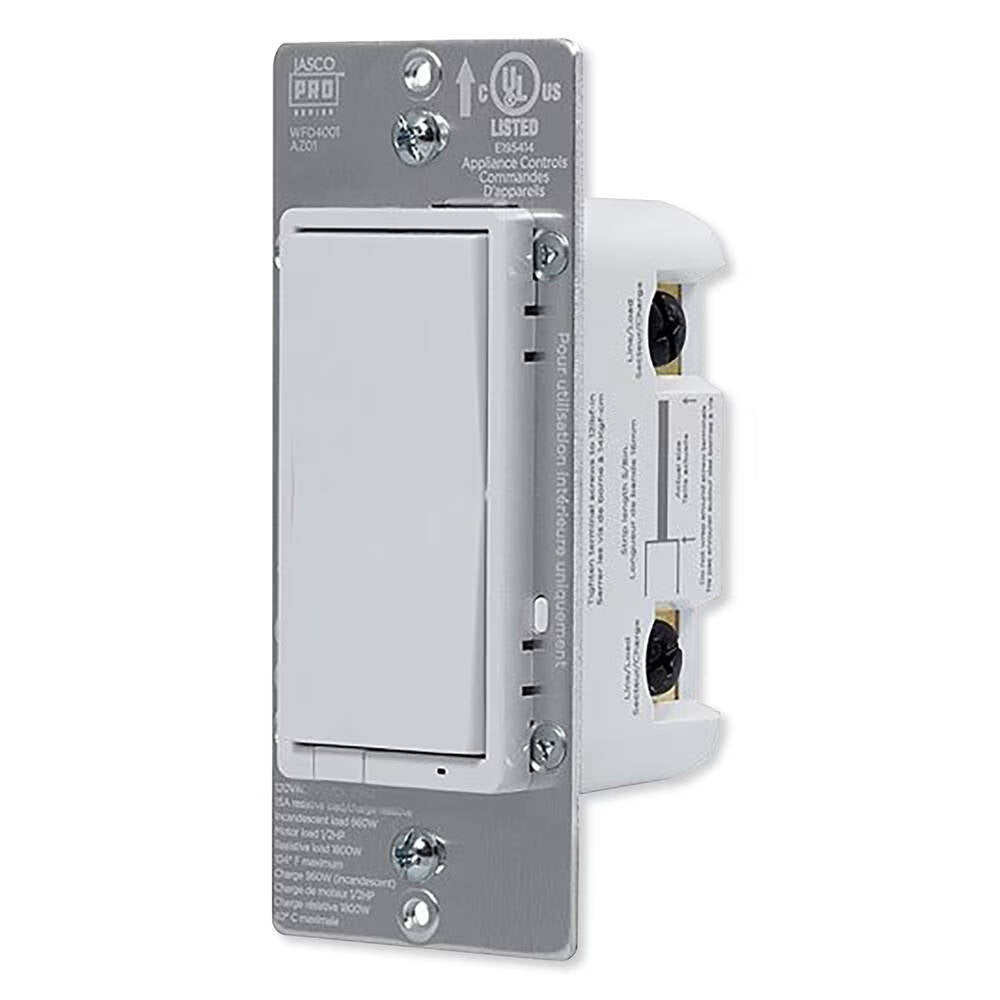

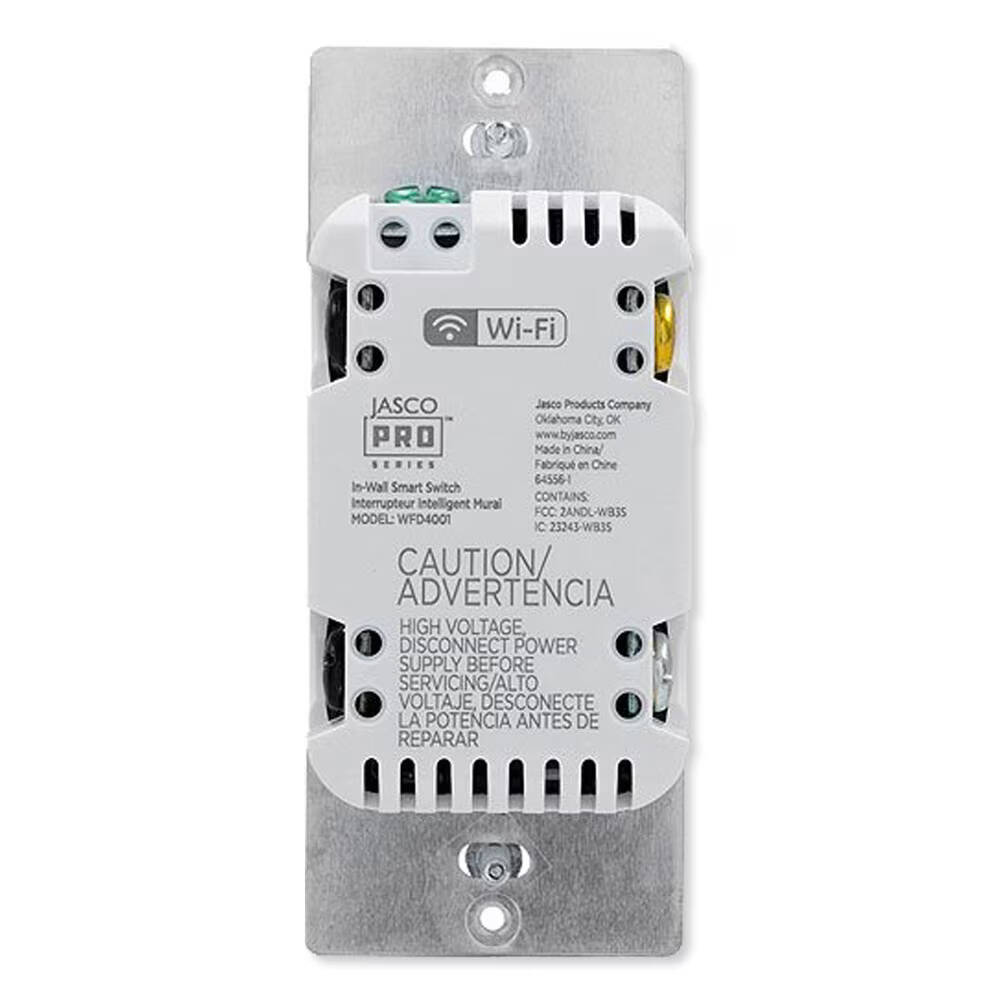

The JascoPro Series Wi-Fi In-Wall Smart Switch is a smart switch controlled via local 2.4GHz Wi-Fi. Works with mobile app or voice control with popular home voice assistants like Amazon Alexa or Google Home with minimal setup required. Jasco’s QuickFit design reduces housing depth and eliminates the need for heat tabs, and SimpleWire technology auto-senses line and load wires, configuring the switch automatically for any orientation. Offset dual ground ports support daisy-chaining in multi-way setups. Built-in LED indicates automatic or manual pairing status, and can be adjusted in-app for advanced device status information.
With a reliable 100’ operating distance from the main router or additional Wi-Fi nodes, users can reliably switch connected devices on and off without needing additional hardware or home hubs; perfect for scheduling and controlling lights, fans and more. Works with LED, CFL, halogen and incandescent loads, as well as ½ HP Motors up to 1800W (15A resistive). App control or touch-sensitive double- and triple- tap operation can trigger pre-set scenes or groups for sophisticated control with minimal software or hardware tie-in. Inline traveler circuit protection provides additional safety for connected loads.
Uses standard decora wallplate (not included). Interchangeable white and light almond paddle included. Requires neutral wire. For indoor use only. Can be used in single-pole, or multi-way installations with up to four Jasco Add-on switches in 3 or 4-way connections, or an existing 3-way switch.
64556 Specs and Features
- Compatible with app, hub or voice assistant control with minimal setup required
- Free JascoPro Series app allows for hub-free operation
- Built-in blue LED indicates ON/OFF, device pairing status, and can be optionally configured for advanced device status information
- LED can be inverted, or set to always on or always off status
- Double- and triple-tap scene activation allows for complex, app-free lighting scenes directly from the switch
- Works with LED, CFL, halogen and incandescent bulbs
- Screw terminal wiring ensures quick and easy installation, QuickFit reduces housing size by 20% (compared to previous models) for easy wall mounting in backboxes without requiring heat tabs
- SimpleWire technology automatically senses load and line voltage wires and auto-configures switch
- Power: 120VAC, 60Hz
- Signal Frequency: 2.4GHz
- Maximum Load: 960W Incandescent, 1/2 HP Motor 1800W (15A Resistive)
- Range: Up to 100 feet from router
- Operating Temperature: 32-104° F (0-40° C)
- Warranty: 5-year limited product warranty
Spécifications techniques
The JascoPro Series Wi-Fi In-Wall Smart Switch is a smart switch controlled via local 2.4GHz Wi-Fi. Works with mobile app or voice control with popular home voice assistants like Amazon Alexa or Google Home with minimal setup required. Jasco’s QuickFit design reduces housing depth and eliminates the need for heat tabs, and SimpleWire technology auto-senses line and load wires, configuring the switch automatically for any orientation. Offset dual ground ports support daisy-chaining in multi-way setups. Built-in LED indicates automatic or manual pairing status, and can be adjusted in-app for advanced device status information.
With a reliable 100’ operating distance from the main router or additional Wi-Fi nodes, users can reliably switch connected devices on and off without needing additional hardware or home hubs; perfect for scheduling and controlling lights, fans and more. Works with LED, CFL, halogen and incandescent loads, as well as ½ HP Motors up to 1800W (15A resistive). App control or touch-sensitive double- and triple- tap operation can trigger pre-set scenes or groups for sophisticated control with minimal software or hardware tie-in. Inline traveler circuit protection provides additional safety for connected loads.
Uses standard decora wallplate (not included). Interchangeable white and light almond paddle included. Requires neutral wire. For indoor use only. Can be used in single-pole, or multi-way installations with up to four Jasco Add-on switches in 3 or 4-way connections, or an existing 3-way switch.
64556 Specs and Features
- Compatible with app, hub or voice assistant control with minimal setup required
- Free JascoPro Series app allows for hub-free operation
- Built-in blue LED indicates ON/OFF, device pairing status, and can be optionally configured for advanced device status information
- LED can be inverted, or set to always on or always off status
- Double- and triple-tap scene activation allows for complex, app-free lighting scenes directly from the switch
- Works with LED, CFL, halogen and incandescent bulbs
- Screw terminal wiring ensures quick and easy installation, QuickFit reduces housing size by 20% (compared to previous models) for easy wall mounting in backboxes without requiring heat tabs
- SimpleWire technology automatically senses load and line voltage wires and auto-configures switch
- Power: 120VAC, 60Hz
- Signal Frequency: 2.4GHz
- Maximum Load: 960W Incandescent, 1/2 HP Motor 1800W (15A Resistive)
- Range: Up to 100 feet from router
- Operating Temperature: 32-104° F (0-40° C)
- Warranty: 5-year limited product warranty
