À propos du produit
Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.

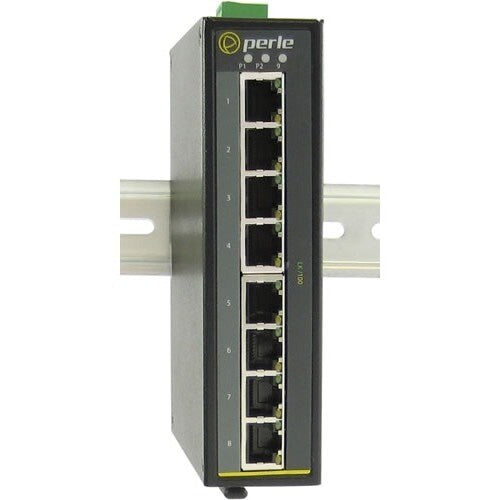

The IDS-108F is an 8 to 10 port Industrial Ethernet Switch providing advanced performance to enable real-time deterministic network operation. It requires no configuration and will operate instantly as soon as you power it up.
The IDS-108F comes in a variety of models with 8 copper ports, 8 copper ports plus 1 fiber port or 8 copper ports plus 2 fiber ports. All are rugged fan-less switches that are hardened to provide superior reliability in 0 to 60°C, or harsh extended operating temperatures from -40 to 75°C.
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Quickly and easily set up a wired network with 8 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
Spécifications techniques
| Management & Protocols | |
| Manageable | No |
| Network & Communication | |
| Layer Supported | 2 |
| Reliability | |
| MTBF | 623989 Hour |
| Media & Performance | |
| Network Technology | 10/100Base-TX |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Power Description | |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | IEEE Standards:
Safety:
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 07010640 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | IDS-108F-XT |
| Product Name | IDS-108F-XT - Industrial Ethernet Switch |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 11.29 oz (320 g) |
| Form Factor | Panel-mountable |
| Wall Mountable | |
| Rail-mountable | |
| Height | 1.40" (35.50 mm) |
| Width | 4.37" (111 mm) |
| Depth | 5.43" (138 mm) |
| Interfaces/Ports | |
| Token Ring Port | No |
| LRE Port | No |
| USB | No |
| Number of Network (RJ-45) Ports | 8 |
| Modular | No |
| Management Port | No |
| Uplink Port | No |
| Stack Port | No |
| Bypass | No |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Fast Ethernet Network |
