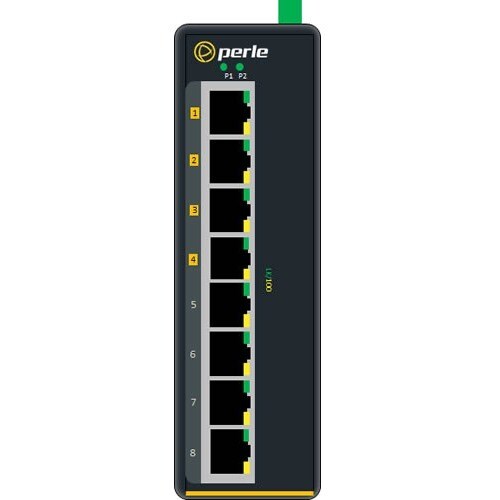

The IDS-108FPP is an 8 to 10 port Industrial Ethernet Switch with Power over Ethernet providing advanced performance enabling real-time deterministic network operation. It requires no configuration and will operate instantly as soon as you power it up.
IDS-108FPP are rugged fan-less switches that are hardened to provide superior reliability in 0 to 60°C, or harsh extended operating temperatures from -40 to 75°C. They come in a variety of models with 8 copper ports, 8 copper ports plus 1 fiber port or 8 copper ports plus 2 fiber ports.
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to places where a power outlet is not present
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 8 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
Spécifications techniques
| Management & Protocols | |
| Manageable | No |
| Network & Communication | |
| Layer Supported | 2 |
| Media & Performance | |
| Network Technology | 10/100Base-TX |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Power Description | |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 07011500 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | IDS-108FPP-XT |
| Product Name | IDS-108FPP-XT - Industrial Ethernet Switch with Power Over Ethernet |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 13.05 oz (370 g) |
| Form Factor | Panel-mountable |
| Wall Mountable | |
| Rail-mountable | |
| Height | 5.43" (137.92 mm) |
| Width | 1.39" (35.31 mm) |
| Depth | 4.37" (111 mm) |
| Interfaces/Ports | |
| Token Ring Port | No |
| LRE Port | No |
| USB | No |
| Number of Network (RJ-45) Ports | 4 |
| Modular | No |
| Management Port | No |
| Uplink Port | No |
| Number of PoE+ (RJ-45) Ports | 4 |
| Stack Port | No |
| Bypass | No |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Fast Ethernet Network |
