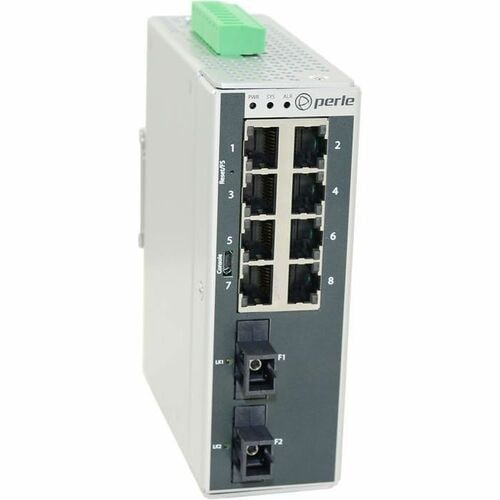

The IDS-710CT is a ten-port Managed Ethernet Switch that can operate in industrial environments, providing advanced performance and enabling real-time deterministic network operation. Eight 10/100/1000-Base-T Ethernet ports are available for networking Gigabit and Fast Ethernet devices. The two 1000Base-X fiber connectors can extend Gigabit Ethernet operating distances over fiber up to 160km (100 miles).
Using fiber is essential in settings that frequently experience high electromagnetic interference (EMI), such as industrial plants. This interference can cause data corruption over copper-based Ethernet links. However, data transmitted over fiber optic cable is immune to this noise ensuring optimal data transmission across the plant floor.
Perle Industrial-grade Ethernet Switches are designed to withstand extreme temperatures, surges, vibrations, and shocks in industrial automation, government, military, oil and gas, mining, and outdoor applications. These rugged fanless switches are hardened to provide superior reliability in -10 to 60°C. Or choose the IDS-710-XT, where every component has been designed and tested to handle operating temperatures between -40 and 70°C.
With over 20 models, the Perle IDS-710CT offers an extensive choice of connectors, fiber types, temperature support, and operating distances. The simple Plug and Play installation in Perle's Fast Setup feature gets your Ethernet devices networked immediately. The familiar Command Line Interface (CLI), via in-band Telnet or the out-band serial console port, will be appreciated by CCNA (Cisco Certified Network Associate) and CCNP (Cisco Certified Network Professional) trained engineers.
The IDS-710 Managed Switches possess top-notch features suitable for enterprise environments that require extensive security, QoS, and network integration functionalities. They can be managed with an IPv6 address and supports a comprehensive set of management functions, including MRP (IEC62439-2), PROFINET, Modbus TCP, management VLAN, Management Access Lists Password Strength requirements, RMON, N:1 port mirroring, and local alert log.
All Perle Industrial Ethernet Switches only use high-end components from the leading chip manufacturers to ensure the highest durability and reliability. In addition, all units have a corrosion-resistant aluminum case and dual redundant power input with reverse polarity and overload protection.
- Gigabit Ethernet port for ultra-fast network speeds
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8.0 ports
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| Technical Information | |
| Features | Fanless |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Total Number of Network Ports | 8.0 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network Port |
| 2 x Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| 1000Base-BX | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 07017520 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | IDS-710-C2MS05D |
| Product Name | IDS-710-C2MS05D Ethernet Switch |
| Product Series | IDS-710CT |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 12.35 oz (350 g) |
| Form Factor | DIN Rail Mountable |
| Panel-mountable | |
| Wall Mountable | |
| Height | 3.66" (93 mm) |
| Width | 1.77" (45 mm) |
| Depth | 4.29" (109 mm) |
| Product Material | Metal |
| Power Description | |
| Input Voltage | 9.6 V DC |
| 60 V DC | |
| 12 V DC | |
| 24 V DC | |
| 48 V DC | |
| Power Source | Power Supply |
| DC | |
| Power Consumption | 8 W |
| Plug/Connector Type | Terminal Block |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
| Miscellaneous | |
| Application/Usage | Enterprise |
| Outdoor | |
| Network | |
| IP Phone | |
| Industrial | |
| Automation Industry | |
| Government | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1ab |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3ad | |
| IEEE 802.3az | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 1588 | |
| IEEE 802.1D | |
| IEEE 802.1p |
