À propos du produit

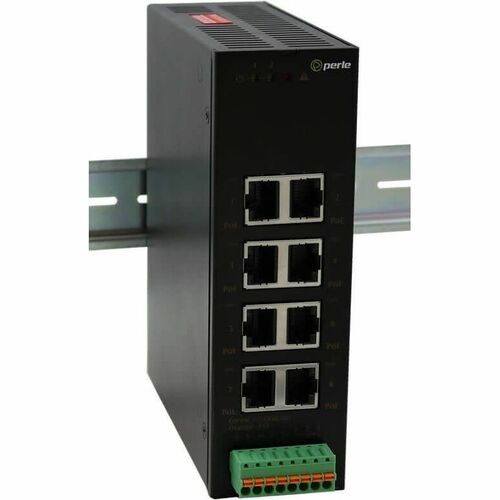

Perle IDS-108HP PoE Switches are designed for easy deployment in challenging industrial environments where extensive temperature tolerance, resistance to vibrations and shocks, and compliance with stringent safety standards are required. This low-cost, easy-to-use device combines essential industrial Ethernet networking functionality, real-time deterministic network operation, and advanced rugged performance. While it requires no configuration and will operate instantly as soon as you power it up, the built-in QoS (Quality of Service) support for EtherNet/IP and PROFINET allows for traffic prioritization and effective management of resources
This versatile switch features full/half-duplex auto-negotiation and auto MDI/MDIX operation, allowing for convenient connection of various network devices. In addition, these PoE Switches are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, the IDS-110HP has eight ports that provide up to 90 watts of power to Powered Devices (PDs) such as outdoor PTZ dome cameras, wireless access points, and way-side communication devices. Learn more . A built-in watchdog feature enables the IDS-108HP switch to operate as an intelligent device to prevent packet loss from powered devices (PDs) in the network. If a PD becomes unresponsive, the IDS-108HP will reboot the device without interrupting other PDs connected to the switch. The IDS-108HP also provides a relay output contact that triggers an immediate alarm when redundant power fails.
Each component within these industrial-grade switches is specialized with overbuilt hardware and chips, ensuring their suitability for outdoor deployment. Their unwavering strength and resilience enable them to provide robust networking solutions, catering to the need for Fast Ethernet and Gigabit networks. They provide the necessary reliability and durability for industrial settings where dependability and high-speed connectivity are crucial. Don't trust your critical communications to commercial switch products. Perle Industrial Ethernet switches give you the proven assurance that your system will keep running for years.
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Quickly and easily set up a wired network with 8 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Cascade to other network devices through the uplink port to expand your local area network
Spécifications techniques
| Management & Protocols | |
| Manageable | No |
| Technical Information | |
| Features | Fanless |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 07017830 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | IDS-108HP |
| Product Name | 8-Port Industrial Gigabit PoE Switch |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 1.23 lb (556 g) |
| Form Factor | Rack-mountable |
| DIN Rail Mountable | |
| Height | 5.71" (145 mm) |
| Width | 1.77" (45 mm) |
| Depth | 4.92" (125 mm) |
| Product Material | Metal |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1Q |
| IEEE 802.1x | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3z | |
| IEEE 802.3at | |
| IEEE 802.3az | |
| IEEE 802.3bt | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 1588v2 | |
| IEEE 802.3af | |
| Power Description | |
| Input Voltage | 54 V DC |
| 46 V DC | |
| 57 V DC | |
| 52 V DC | |
| Power Source | Power Supply |
| PoE | |
| DC | |
| Power Consumption | 9.72 W |
| Plug/Connector Type | Terminal Block |
| Number of Power Supplies Supported | 2 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 270 W |
| Miscellaneous | |
| Application/Usage | Wireless Access Point |
| VoIP Phone | |
| IP Phone | |
| Network | |
| Outdoor | |
| IP Camera | |
| Industrial | |
| Government | |
| Automation Industry | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
