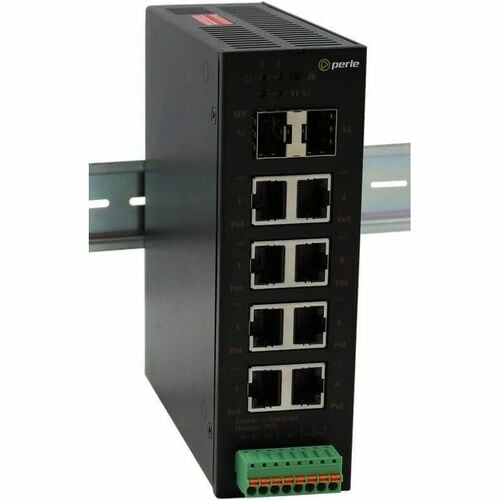

Perle IDS-110HP PoE Switches are designed for easy deployment in challenging industrial environments where extensive temperature tolerance, resistance to vibrations and shocks, and compliance with stringent safety standards are required. This low-cost, easy-to-use device combines essential industrial Ethernet networking functionality, real-time deterministic network operation, and advanced rugged performance. While it requires no configuration and will operate instantly as soon as you power it up, the built-in QoS (Quality of Service) support for EtherNet/IP and PROFINET allows for traffic prioritization and effective management of resources.
This versatile switch features full/half-duplex auto-negotiation and auto MDI/MDIX operation, allowing for convenient connection of various network devices. The two SFP fiber ports enable flexible network configurations using SFP transceivers supplied by Perle, Cisco, or other manufacturers of MSA- compliant SFPs.
In addition, these PoE Switches are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, the IDS-110HP has four ports that provide up to 90 watts of power to Powered Devices (PDs) such as outdoor PTZ dome cameras, wireless access points, and way-side communication devices.
A built-in watchdog feature enables the IDS-110HP switch to operate as an intelligent device to prevent packet loss from powered devices (PDs) in the network. If a PD becomes unresponsive, the IDS-110HP will reboot the device without interrupting other PDs connected to the switch.
The IDS-110HP also provides a relay output contact that triggers an immediate alarm when redundant power fails.Each component within these industrial-grade switches is specialized with overbuilt hardware and chips, ensuring their suitability for outdoor deployment. Their unwavering strength and resilience enable them to provide robust networking solutions, catering to the need for Fast Ethernet and Gigabit networks. They provide the necessary reliability and durability for industrial settings where dependability and high-speed connectivity are crucial. Don't trust your critical communications to commercial switch products. Perle Industrial Ethernet switches give you the proven assurance that your system will keep running for years.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports layer 3 switching for enhanced performance and usability
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
- Quickly and easily set up a wired network with 8.0 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8.0 ports
Spécifications techniques
| Management & Protocols | |
| Manageable | No |
| Technical Information | |
| Features | Fanless |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 8.0 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE |
| 2 x Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 10/100/1000Base-TX |
| 1000Base-LX | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 07017840 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | IDS-110HP |
| Product Name | IDS-110HP Ethernet Switch |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 1.28 lb (582 g) |
| Form Factor | Panel-mountable |
| DIN Rail Mountable | |
| Wall Mountable | |
| Height | 5.71" (145 mm) |
| Width | 1.77" (45 mm) |
| Depth | 4.92" (125 mm) |
| Product Material | Metal |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1Q |
| IEEE 802.1x | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3z | |
| IEEE 802.3at | |
| IEEE 802.3az | |
| IEEE 802.3bt | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 1588v2 | |
| IEEE 802.3af | |
| Power Description | |
| Input Voltage | 57 V DC |
| 46 V DC | |
| 52 V DC | |
| 54 V DC | |
| Power Source | DC |
| PoE | |
| Power Supply | |
| Power Consumption | 8 W |
| Plug/Connector Type | Terminal Block |
| Number of Power Supplies Supported | 2 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 270 W |
| Miscellaneous | |
| Application/Usage | Outdoor |
| Wireless Access Point | |
| Network | |
| IP Phone | |
| IP Camera | |
| Industrial | |
| Government | |
| Automation Industry | |
| VoIP Phone | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
