À propos du produit

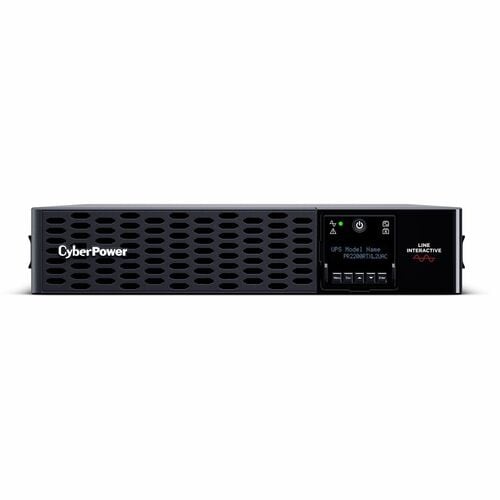

The PR2200RTXL2UACN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
The Smart App Sinewave PR2200RTXL2UACN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UACN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes built-in cloud monitoring and pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RTXL2UACN.
- Works adequately in situations where the supply is prone to sags and surges
- Prevent critical data loss by staying powered during a blackout with up to 2.20 kW load capacity
- 2.20 kVA load capacity provides sufficient backup during power failures
- Up to 6.30 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LCD |
| Miscellaneous | |
| Certifications & Standards |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 135 BTU/h |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9843 ft (3000146.40 mm) |
| Maximum Storage Elevation | 49213 ft (15000122.40 mm) |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PR2200RTXL2UACN |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR2200RTXL2UACN |
| Product Name | New Smart App Sinewave UPS PR2200RTXL2UACN 2200VA Tower/Rack Convertible UPS |
| Product Series | New Smart App Sinewave UPS |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 93 lb (42184.09 g) |
| Form Factor | Tower/Rack Convertible |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.10" (434.34 mm) |
| Depth | 24.80" (629.92 mm) |
| Product Color | Black |
| Color Family | Black |
| Management | |
| Network Management | Dry Contact |
| SNMP/HTTP Remote Monitoring | |
| Relay-MS Card | |
| Network Card | |
| Alarm | Overload |
| Overheat | |
| Over-charge | |
| Low Battery | |
| Battery Mode | |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 5700 mAh |
| Number of Batteries | 8 |
| Backup/Run Time (Half Load) | 16 Minute |
| Backup/Run Time (Full Load) | 6.30 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| 110 V AC | |
| 100 V AC | |
| Surge Energy Rating | 2430 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 75 V AC - 155 V AC |
| 100 V AC - 120 V AC | |
| 70 V AC - 155 V AC | |
| Output Frequency | 50 Hz |
| 60 Hz | |
| Input Frequency | 63 Hz |
| 47 Hz | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 2.20 kW |
| Output Power Factor | 1 |
| Technical Information | |
| Application/Usage | Server |
| Network Device | |
| Telecommunication | |
| VoIP Phone System | |
| Storage Device | |
| Network | |
| Equipment | |
| Corporate | |
| Features | Audible Alarm |
| Overload Protection | Yes |
| Surge Suppression | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA 5-20R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 13 ms |
| Receptacle Detail | 8 x NEMA 5-20R |
