À propos du produit

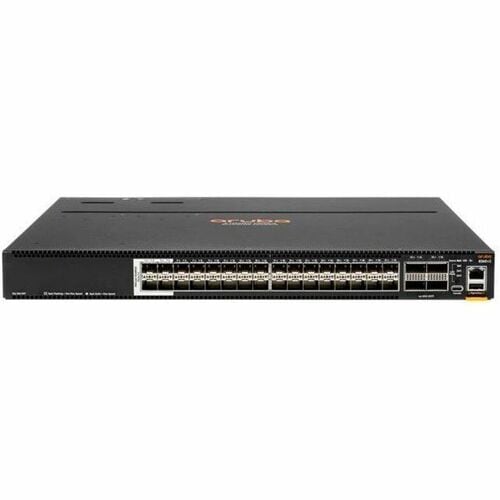

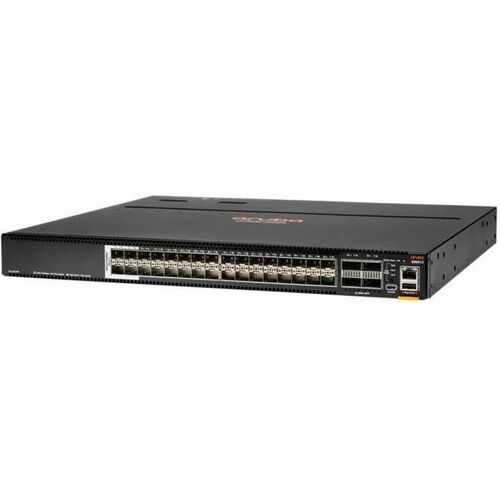

Aruba CX 8360 Switch Series
The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.
The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.
In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.
- High-performance 4.8Tbps and 2,678 Mpps
- Intelligent monitoring and visibility with Aruba Network Analytics Engine
- High availability with industry leading VSX redundancy, and redundant power supplies and fans
- Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments
- MACsec secured connectivity over untrusted domains
- ArubaOS-CX automation and programmability using built-in REST APIs and Python scripts
- Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6
- 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches
- Addition of Smart Rate (1/2.5/5/10G) ports on the 8360-48XT4C
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP28 |
| QSFP28 | |
| Total Number of Expansion Slots | 36.0 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 32 x 25 Gigabit Ethernet Expansion Slot |
| 4 x 100 Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 100GBase-X |
| 25GBase-X | |
| Ethernet Technology | 100 Gigabit Ethernet |
| 25 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL701CABA |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 8360v2- 32Y4C |
| Product Name | 8360v2- 32Y4C Ethernet Switch |
| Product Series | CX 8360 |
| Brand Name | HPE |
| Physical Characteristics | |
| Weight (Approximate) | 18.06 lb (8190 g) |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 16" (406.40 mm) |
| Compatible Rack Unit | 1U |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Application/Usage | Data Center |
| Enterprise | |
| Business | |
| Campus | |
| Industrial | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| AC | |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 425 W |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply Supported | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1ab |
| IEEE 802.1ae | |
| IEEE 802.3cc | |
| IEEE 802.1Qbb | |
| IEEE 802.1s | |
| IEEE 802.1t | |
| IEEE 802.1v | |
| IEEE 802.1w | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3an | |
| IEEE 802.3ba | |
| IEEE 802.1AX | |
| IEEE 802.3z | |
| IEEE 802.3by | |
| IEEE 802.1ak | |
| IEEE 802.1AEbw | |
| IEEE 802.1AEbn | |
| IEEE 802.1D | |
| IEEE 802.1Q |
