À propos du produit

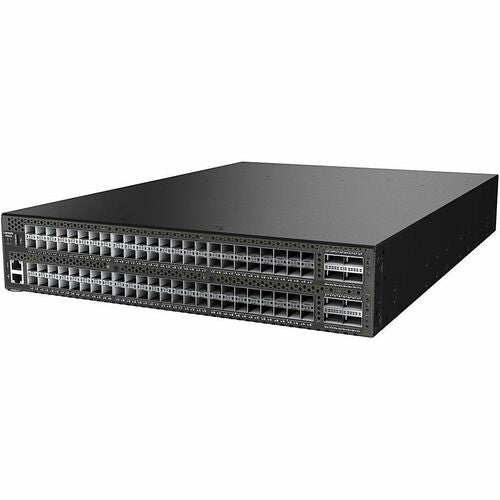

The Lenovo ThinkSystem DB630S FC SAN Switch delivers 32 Gb Gen 6 Fibre Channel technology with industry-leading port density and combines scalability, reliability, flexibility, simplicity, and enterprise-class functionality to meet the demands of hyper-scale, private cloud storage, and growing flash-based and NVMe storage environments.
The DB630S FC SAN Switch is a dense, 2U rack-mount storage networking switch that offers 96x SFP+ ports that support 4/8/10/16/32 Gbps speeds and 8x QSFP+ ports that support 128 Gbps (4x 32 Gbps) or 4x 4/8/16/32 Gbps speeds. The DB630S FC SAN switch offers a rich set of standard features with the options to expand its capabilities as needed, providing "pay-as-you-grow" scalability to meet the needs of an evolving storage environment.
The DB630S FC SAN Switch featureseasy integration into the existing SAN environments while realizing the benefits of Gen 6 Fibre Channel connectivity. The switch provides full non-blocking performance with Ports On Demand scalability to support SAN expansion and enable long-term investment protection
Spécifications techniques
| Media & Performance | |
| Data Transfer Rate | 32 Gbit/s |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 48 |
| Total Number of Expansion Slots | 48 |
| Interfaces/Ports | |
| Number of Fibre Channel Ports | 48 |
| Number of Network (RJ-45) Ports | 2 |
| Total Number of Ports | 48 |
| Power Description | |
| Plug/Connector Type | C14 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 1.50 kW |
| Physical Characteristics | |
| Weight (Approximate) | 46.98 lb (21310 g) |
| Form Factor | Rack-mountable |
| Height | 3.43" (87 mm) |
| Width | 17.32" (440 mm) |
| Depth | 24.02" (610 mm) |
| Compatible Rack Unit | 2U |
| General Information | |
| Product Type | Fibre Channel Switch |
| Manufacturer Part Number | 7D1SA004WW |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | DB630S |
| Product Name | ThinkSystem DB630S Fibre Channel Switch |
| Product Line | ThinkSystem |
| Brand Name | Lenovo |
