À propos du produit

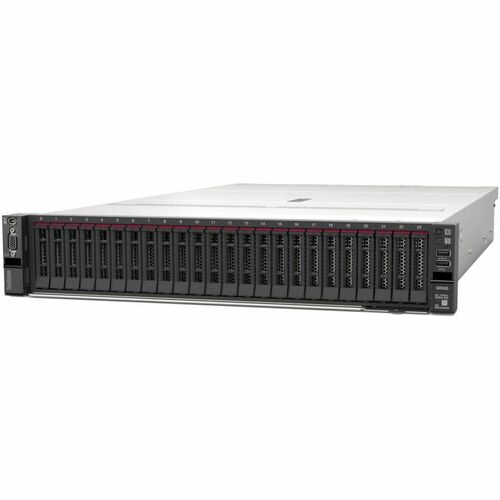

The Lenovo ThinkSystem SR665 is a 2-socket 2U server that features the AMD EPYC 7002 "Rome" and AMD EPYC 7003 "Milan" families of processors. With up to 64 cores per processor and support for the new PCIe 4.0 standard for I/O, the SR665 offers the ultimate in two-socket server performance in a 2U form factor.
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- 1.10 kW power supply unit (PSU) fulfills your system's power requirements
- RAID provides data reliability, fault tolerance and improves overall performance
- With 32 GB memory, improve system performance to execute complex applications
- 1.92 TB SSD for spacious storage with faster data transfer speeds than standard hard drives. It can hold tons of digital content, files and documents.
Spécifications techniques
| Chipset | |
| Chipset Manufacturer | AMD |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Display & Graphics | |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| Storage | |
| Solid State Drive Interface | Serial ATA/600 |
| Solid State Drive Configuration | 1 x 1.92TB |
| Total Solid State Drive Capacity | 1.92 TB |
| Number of Solid State Drives | 1 |
| Controllers | |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| Serial ATA | |
| RAID Supported | Yes |
| Controller Model | 930-16i |
| I/O Expansions | |
| "Number of Internal 2.5"" Bays" | 16 |
| Number of Total Expansion Bays | 16 |
| Total Number of Expansion Slots | 3 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 16 |
| PCI Express Details | 3 (x16, x8, x8) Gen4 |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 85.54 lb (38800 g) |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 30.10" (764.54 mm) |
| Interfaces/Ports | |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 2 |
| Number of USB 3.1 Type-A Ports | 5 |
| Remote Management Controller | XCC Enterprise |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 8 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 32 |
| Processor | |
| Cache | 256 MB |
| Processor Speed | 2.45 GHz |
| Processor Type | EPYC |
| Processor Model | 7763 |
| Processor Core | Tetrahexaconta-core (64 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 3rd Gen |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7D2V1005NA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D2V1005NA |
| Product Name | ThinkSystem SR665 7D2V1005NA Server |
| Product Line | ThinkSystem |
| Product Series | SR665 |
| Brand Name | Lenovo |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 1.10 kW |
| Operating System | |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP2 |
| SUSE Linux Enterprise Server 15 SP3 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SUSE Linux Enterprise Server 15 SP1 |
