À propos du produit

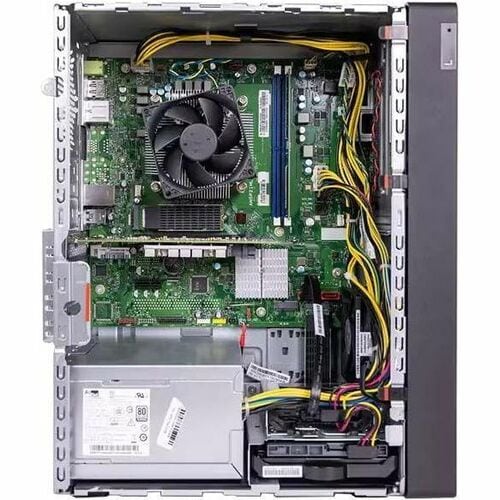

The Lenovo ThinkSystem ST45 V3 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the AMD EPYC 4004 Series processor (formerly codenamed "Raphael").
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- 1 x 300 W power supply unit (PSU) included
- With 16 GB memory, improve system performance to execute complex applications
Spécifications techniques
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | PRO-665 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | No |
| Operating System | |
| Operating System Supported | Windows Server 2022 |
| Ubuntu 24.04 LTS x64 | |
| SUSE Linux Enterprise Server 15 SP6 | |
| Red Hat Enterprise Linux 9.4 | |
| Physical Characteristics | |
| Weight (Approximate) | 18.87 lb (8560 g) |
| Form Factor | Tower |
| Height | 14.80" (376 mm) |
| Width | 6.69" (170 mm) |
| Depth | 12.44" (316 mm) |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| "Number of 3.5"" Bays" | 1 |
| Total Number of Expansion Slots | 2 |
| Hot Swappable Bays | No |
| Number of LFF Bays | 1 |
| PCI Express Details | Slot 1: PCIe 3.0 x16 full-height half-length (FHHL) (75W) Slot 3: PCIe 3.0 x1 full-height half-length (FHHL) (25W) |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 64 GB |
| Signal Processing | Unregistered (Unbuffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 5.60 GHz |
| Total Number of Memory Slots | 2 |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | No |
| Maximum Power Supply Wattage | 300 W |
| Processor | |
| Cache | 16 MB |
| Processor Speed | 3.80 GHz |
| Processor Type | EPYC |
| Processor Model | 4124P |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | AMD |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7DH5A00DNA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7DH5A00DNA |
| Product Name | ThinkSystem ST45 V3 7DH5A00DNA Server |
| Product Line | ThinkSystem |
| Product Series | ST45 V3 |
| Brand Name | Lenovo |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 4 |
| Number of DisplayPorts | 2 |
| Remote Management Controller | XClarity Controller (XCC) |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) | |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| China Energy Conservation Program (CECP) | |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
