Lenovo ThinkSystem DE6000H is a scalable, hybrid mid-range storage system that is designed to provide high performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE6000H delivers enterprise-class storage management capabilities in a performance-optimized system with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE6000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.

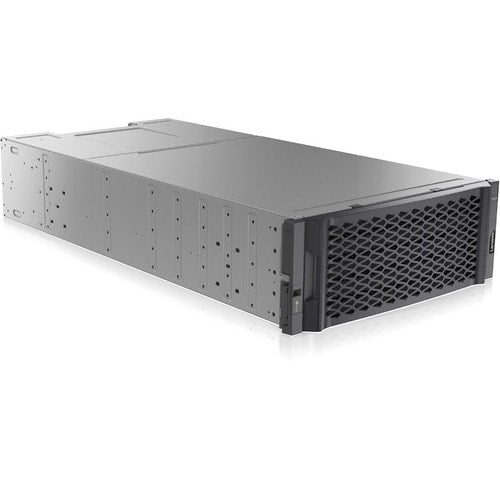

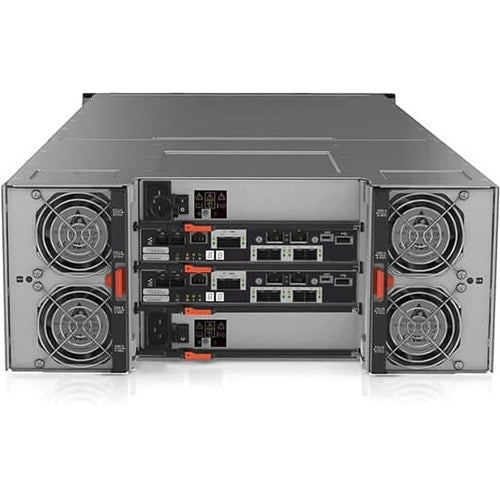

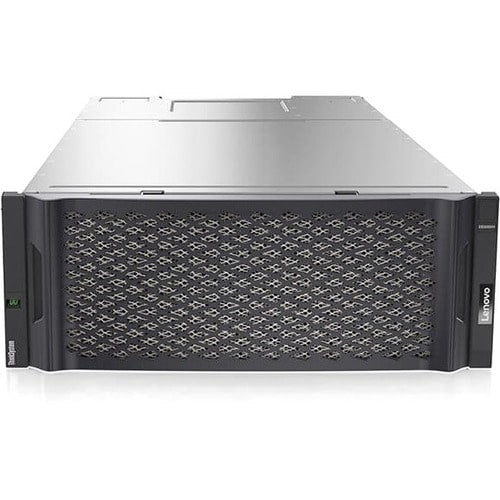

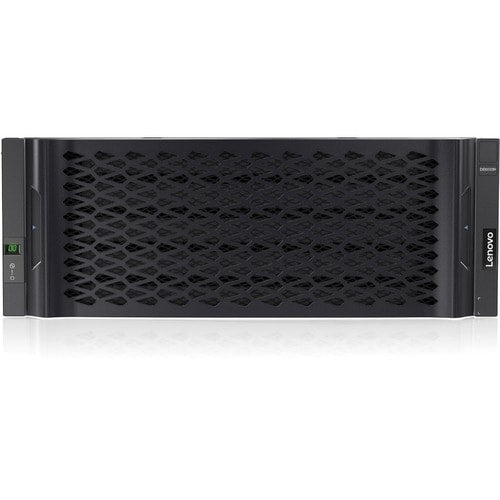

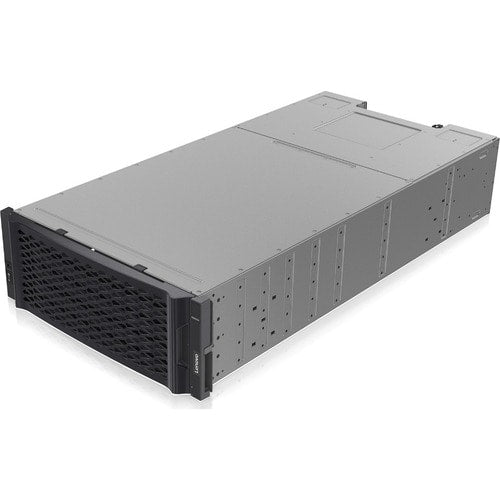

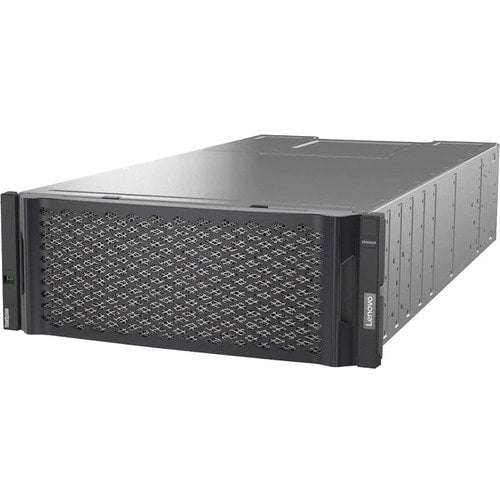

ThinkSystem DE6000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 16 GB or 64 GB system memory for a system total of 32 GB or 128 GB. Host interface cards provide 12 Gb SAS, 10/25 Gb iSCSI, 8/16/32 Gb FC or NVMe/FC, or 25/40/100 Gb NVMe/RoCE host connections.
- Featuring Gigabit Ethernet port for ultra-fast network speeds
- Through RAID levels (0, 1, 3, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
Spécifications techniques
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Three-year Customer-replaceable Unit And Onsite Limited Warranty With 9x5 Next Business Day (Nbd) Parts Delivered. |
| I/O Expansions | |
| Number of Total Expansion Bays | 60 |
| "Number of 3.5"" Bays" | 60 |
| Controllers | |
| RAID Levels | 0, 1, 3, 5, 6, 10 |
| Number of Controllers | 2 |
| RAID Supported | Yes |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Plug/Connector Type | C19 to IEC 320-C20 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 2.33 kW |
| Storage | |
| Number of Hard Drives Supported | 60 |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 60 |
| Number of Solid State Drive Installed | No |
| Interfaces/Ports | |
| Host Interface | Fibre Channel |
| Fibre Channel | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Management & Protocols | |
| Protocols | SMI-S |
| LDAP | |
| iSCSI | |
| SNMP | |
| SSH | |
| SSL | |
| Physical Characteristics | |
| Weight (Approximate) | 239.18 lb (108490 g) |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.85" (174 mm) |
| Width | 17.68" (449 mm) |
| Depth | 36.30" (922 mm) |
| General Information | |
| Product Type | SAN Storage System |
| Manufacturer Part Number | 7Y80A00PWW |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | DE6000H |
| Product Name | ThinkSystem DE6000H SAN Storage System |
| Product Line | ThinkSystem |
| Product Series | DE |
| Brand Name | Lenovo |
