À propos du produit

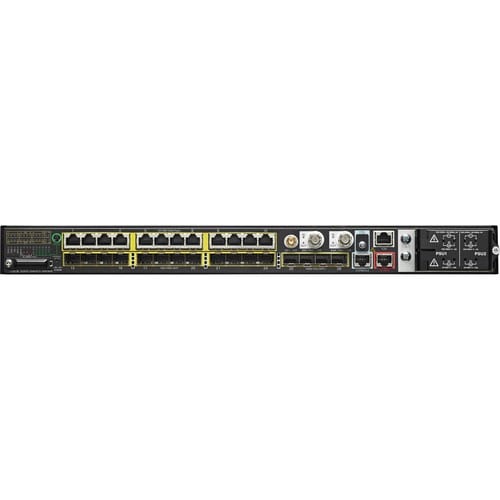

The Cisco® Industrial Ethernet (IE) 5000 Series Switches with four 10 Gigabit Ethernet uplinks and 24 Gigabit Ethernet downlinks is a rack mount, ruggedized switch that provides Layer 2 and Layer 3 line rate aggregation and copper Power over Ethernet (PoE) connectivity in the harshest of industrial environments.
The IE 5000 Series uses superior high-bandwidth hardware switching and proven Cisco IOS® Software. The IE 5000 is highly secure and scalable for access and aggregation layer deployments. It also provides industry-leading rapid convergence using the Cisco Resilient Ethernet Protocol (REP) and zero-convergence using the Parallel Redundancy Protocol (PRP). The switch is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.
The IE 5000 Series is ideal for Industrial Ethernet applications where hardened products are required. This includes utility industries, manufacturing, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth with 10 Gigabit Ethernet interfaces, a richer feature set, and enhanced hardware, the Cisco IE 5000 Series Switches complement the current Industrial Ethernet portfolio of products. This portfolio includes Cisco industrial Ethernet switches, such as the Cisco IE 2000, IE 3000, IE 3010, and IE 4000 Series Switches, as well as utility-focused products, such as the Cisco IE 2000U Industrial Ethernet switches and Cisco 2500 Series Connected Grid Switches.
Through a user-friendly web device manager, the IE 5000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
The IE 5000 Series uses superior high-bandwidth hardware switching and proven Cisco IOS® Software. The IE 5000 is highly secure and scalable for access and aggregation layer deployments. It also provides industry-leading rapid convergence using the Cisco Resilient Ethernet Protocol (REP) and zero-convergence using the Parallel Redundancy Protocol (PRP). The switch is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.
The IE 5000 Series is ideal for Industrial Ethernet applications where hardened products are required. This includes utility industries, manufacturing, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth with 10 Gigabit Ethernet interfaces, a richer feature set, and enhanced hardware, the Cisco IE 5000 Series Switches complement the current Industrial Ethernet portfolio of products. This portfolio includes Cisco industrial Ethernet switches, such as the Cisco IE 2000, IE 3000, IE 3010, and IE 4000 Series Switches, as well as utility-focused products, such as the Cisco IE 2000U Industrial Ethernet switches and Cisco 2500 Series Connected Grid Switches.
Through a user-friendly web device manager, the IE 5000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 12 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 12 ports
- Cascade to other network devices through the uplink port to expand your local area network
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Power Description | |
| Power Source | Power Supply |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| SFP+ | |
| Number of SFP Slots | 12 |
| Number of SFP+ Slots | 4 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 16.0 |
| Physical Characteristics | |
| Weight (Approximate) | 13.69 lb (6210 g) |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 14" (355.60 mm) |
| Compatible Rack Unit | 1U |
| Interfaces/Ports | |
| Modular | No |
| Uplink Port | Yes |
| Stack Port | No |
| Total Number of Network Ports | 12 |
| Port/Expansion Slot Details | 12 x Gigabit Ethernet Network |
| 12 x Gigabit Ethernet Expansion Slot | |
| 4 x 10 Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 10/100/1000Base-TX |
| 1000Base-X | |
| 10GBase-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IE-5000-12S12P-10G |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | IE-5000-12S12P-10G |
| Product Name | IE-5000-12S12P-10G Ethernet Switch |
| Product Series | 5000 |
| Brand Name | Cisco |
